如何在vue单页应用中使用百度地图

标签:
Vue.js

 作为一名开发人员,每次接到开发任务,我们首先应该先分析需求,然后再思考技术方案和解决方案。三思而后行,这是一个好的习惯。

需求:本项目是采用vue组件化开发的单页应用项目,现需要在项目中引入百度的地图展示功能,用于展示所有项目的分布情况。搜索功能(省略,不是这里介绍的内容).......

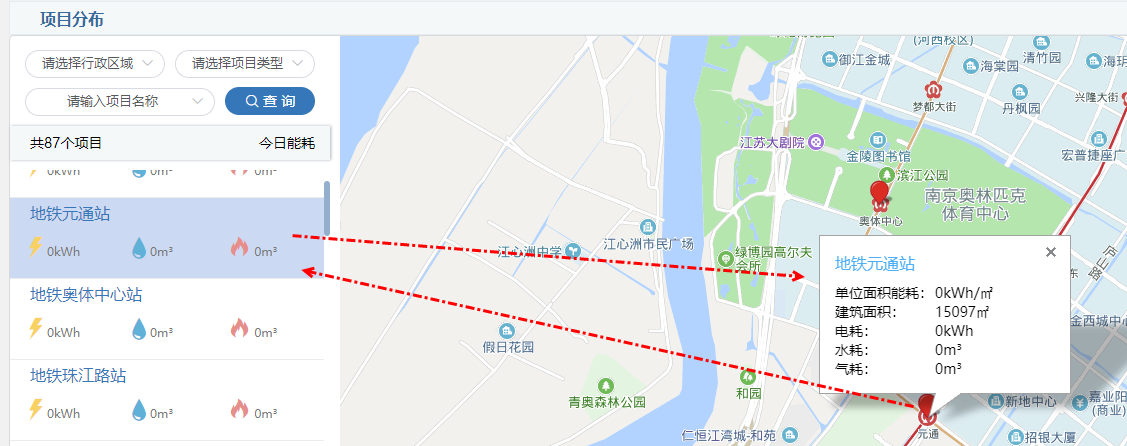

交互:选中左侧的项目,选中项高亮,自动定位到右侧地图中项目所在位置,并弹出项目的基本信息。点击右侧的项目,自动高亮显示左侧的项目,并滚动到项目所在位置。地图支持聚合和缩放。

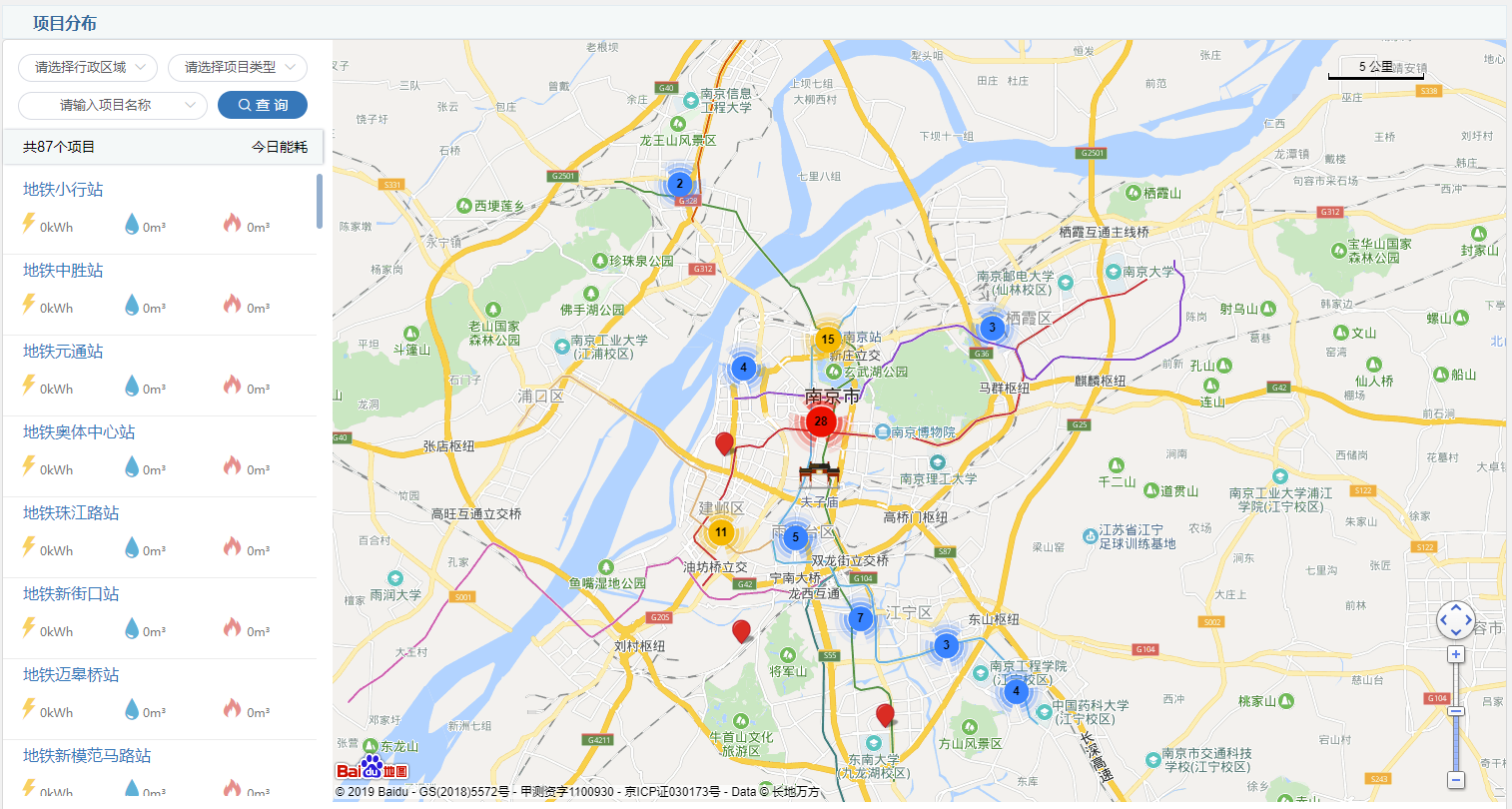

 项目运行效果如下图所示:

接下来开始开发:

在vue中引入百度地图

百度开发者平台已经封装了基于vue的地图组件,详细使用,请参考官网:

https://dafrok.github.io/vue-baidu-map/#/zh/start/installation

网上有一些是直接在index.html页面全部引用的,本人强烈反对此种使用方式,因为我们项目是组件化的单页应用,强行引入多页应用的开发方式,会破坏整个项目的框架,严重影响性能。有些甚至还在vue单页应用中引入jquery,感觉这都是一些反人类的骚操作,不到万不得已,不建议使用。

使用方式

我这里只演示单页应用的开发方式。

1.安装组件

$ npm install vue-baidu-map --save

2.注册组件

组件的注册可以分为全局注册和局部注册,我这里采用的是局部注册。因为整个项目中仅此一个界面使用。引入官方的说明:

如果有按需引入组件的需要,可以选择局部注册百度地图组件,这将减少工程打包后的容量尺寸。局部注册的 BaiduMap 组件必须声明 ak 属性。 所有的独立组件均存放在 vue-baidu-map/components 文件夹下,按需引用即可。 由于未编译的 ES 模块不能在大多数浏览器中直接运行,如果引入组件时发生运行时错误,请检查 webpack 的 loader 配置,确认 includeexclude 选项命中了组件库。

引入组件代码如下:

复制代码

    //百度地图     import BaiduMap from 'vue-baidu-map/components/map/Map.vue'     import BmScale from 'vue-baidu-map/components/controls/Scale'     import BmNavigation from 'vue-baidu-map/components/controls/Navigation'     import BmMarkerClusterer from  'vue-baidu-map/components/extra/MarkerClusterer'     import BmMarker from 'vue-baidu-map/components/overlays/Marker'     import BmInfoWindow from 'vue-baidu-map/components/overlays/InfoWindow'

复制代码

组件注册:

复制代码

    export default {         name: "pm-distribution",         components: {             BaiduMap,             BmScale,             BmNavigation,             BmMarkerClusterer,             BmMarker,             BmInfoWindow         }, ......

复制代码

3.HTML部分:

复制代码

              <baidu-map :style="{width:map.width,height:map.height}" class="map" ak="你的百度地图秘钥" :zoom="map.zoom" :center="{lng: map.center.lng, lat: map.center.lat}"
 @ready="handler" :scroll-wheel-zoom="true">                     <!--比例尺控件-->                     <bm-scale anchor="BMAP_ANCHOR_TOP_RIGHT"></bm-scale>                     <!--缩放控件-->                     <bm-navigation anchor="BMAP_ANCHOR_BOTTOM_RIGHT" ></bm-navigation>                     <!--聚合动态添加的点坐标-->                     <bm-marker-clusterer :averageCenter="true">                         <bm-marker v-for="marker of markers" :key="marker.code" :position="{lng: marker.lng, lat: marker.lat}" @click="lookDetail(marker)"></bm-marker>                     </bm-marker-clusterer>                     <!--信息窗体-->                     <bm-info-window :position="{lng: infoWindow.info.lng, lat: infoWindow.info.lat}" :title="infoWindow.info.name" :show="infoWindow.show" @close="infoWindowClose" @open="infoWindowOpen">                         <p><span class="left">单位面积能耗:</span><span class="right">{{infoWindow.info.areaEnergy}}kWh/㎡</span></p>                         <p><span class="left">建筑面积:</span><span class="right">{{infoWindow.info.area}}㎡</span></p>                         <p><span class="left">电耗:</span><span class="right">{{infoWindow.info.energy}}kWh</span></p>                         <p><span class="left">水耗:</span><span class="right">{{infoWindow.info.water}}m³</span></p>                         <p><span class="left">气耗:</span><span class="right">{{infoWindow.info.air}}m³</span></p>                     </bm-info-window>                 </baidu-map>

复制代码

寻找共性,提取公共部分,左侧点击项目和地图中点击项目,效果大体一致,都是弹出一个信息框,提取方法:

复制代码

            //查看详情             lookDetail(data, target){                 this.infoWindow.show =true;                 this.infoWindow.info=data;                 this.activeName = data.name;                 //为弹窗口标题添加title                 this.$nextTick(()=>{                     var win=document.querySelector(".BMap_bubble_title");                     win.title = this.activeName;                 })                 if(target=='left'){ //点击的是左侧列表项,则不需要滚动                     this.map.center={lng: data.lng, lat: data.lat};                     this.map.zoom = 15;                     return;                 }                 //滚动到指定元素位置                 this.$nextTick(()=>{                     var obj=document.querySelector(".active");                     var scrollTop=obj.offsetTop;                     this.$refs.box.scrollTop=scrollTop-180;                 })             },

复制代码

注意看上述代码,用到了this.$nextTick,这是在vue中如果要对dom进行操作,在此方法中可以保证dom节点已加载完成,vue中是以数据驱动的形式来渲染dom的,也就是说数据修改后,dom不会马上改变,它会排队等待修改。再演示某些程序员的骚操作:

                setTimeout(function () {                      var win=document.querySelector(".BMap_bubble_title");                      win.title = This.activeName;                  },300);

注意看:上述代码使用了setTimeout进行延时,来避免数据改变了,但是获取的dom中数据不是最新的情况,虽然大部分情况下可以解决问题,但是存在缺陷。1、你如何确定刚好300毫秒就可以读取到最新的dom数据了。(经验值)2.万一你设置的这个延时时间小了呢?或者数据变更得慢了一些呢?可能你设置了300ms,可实际100ms就已经变更了呢?是不是存在200ms的效率差?等等.....

 左侧项目名称超出自动显示省略号

单行文本的溢出显示省略号同学们应该都知道用text-overflow:ellipsis属性来,当然还需要加宽度width属来兼容部分浏览。
实现方法直接通过css样式控制:

overflow: hidden; text-overflow:ellipsis; white-space: nowrap;

左侧项目列表选中项高亮,其它项正常显示

通过定义一个变量activeName ,记录当前选中的项目名称(此处项目名称不可能重复),如果当前项目的名称和activeName  的值一致时,添加一个css样式名称active,然后设置这个样式active高亮(设置背景色啊等等)

如下代码所示:

<div class="row" v-for="marker of markers" :key="marker.code" @click="lookDetail(marker,'left')" :class="{active: activeName == marker.name}">

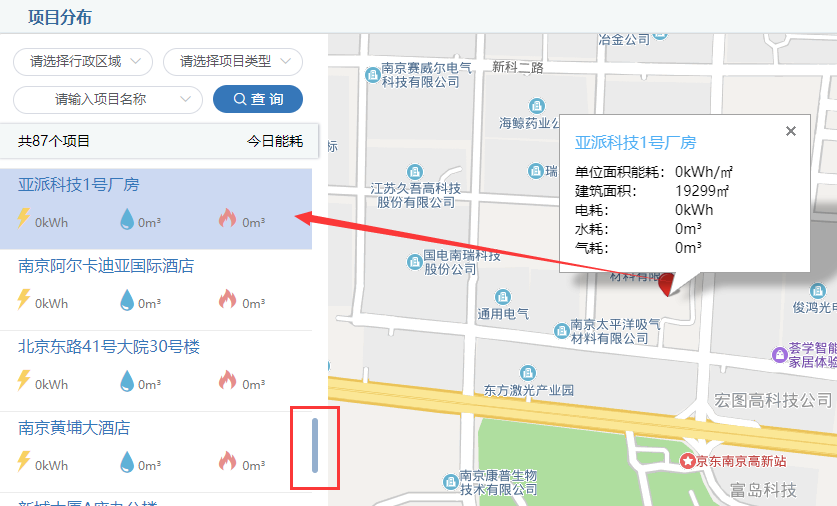

点击地图中项目,自动定位到左侧项目选中位置

左侧选中的dom,有一个激活样式active,获取到它的offsetTop属性,然后设置列表容器的scrollTop属性即可。

复制代码

               //滚动到指定元素位置                 this.$nextTick(()=>{                     var obj=document.querySelector(".active");                     var scrollTop=obj.offsetTop;                     this.$refs.box.scrollTop=scrollTop-180;                 })

复制代码

注意:点击左侧项目,不需要滚动,只有点击地图中的项目才去滚动。

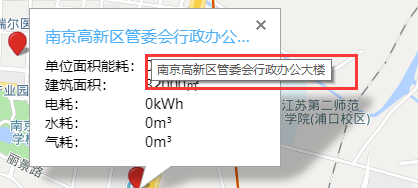

关于项目信息框中标题超出添加省略号,添加title完整提示

通常我们添加了超出部分省略号,一般都会给其添加一个完整的title显示。在现有的百度提供的InfoWindow组件中是没有封装这个属性的,所以我们通常有两种办法:1.扩展组件源码(耗时)2.直接dom操作。

这里我选择第二种,因为快。浏览器中按F12,可以发现这个标题的HTML代码部分:

<div class="BMap_bubble_title" style="overflow: hidden; height: auto; line-height: 24px; white-space: nowrap; width: auto;" title="南京高新区管委会行政办公大楼">南京高新区管委会行政办公大楼</div>

我们看到有一个BMap_bubble_title样式,我们可以直接操作这个dom。

代码如下:

               //为弹窗口标题添加title                 this.$nextTick(()=>{                     var win=document.querySelector(".BMap_bubble_title");                     win.title = this.activeName;                 })

从左侧树点击项目要修改Zoom,直接定位到项目信息

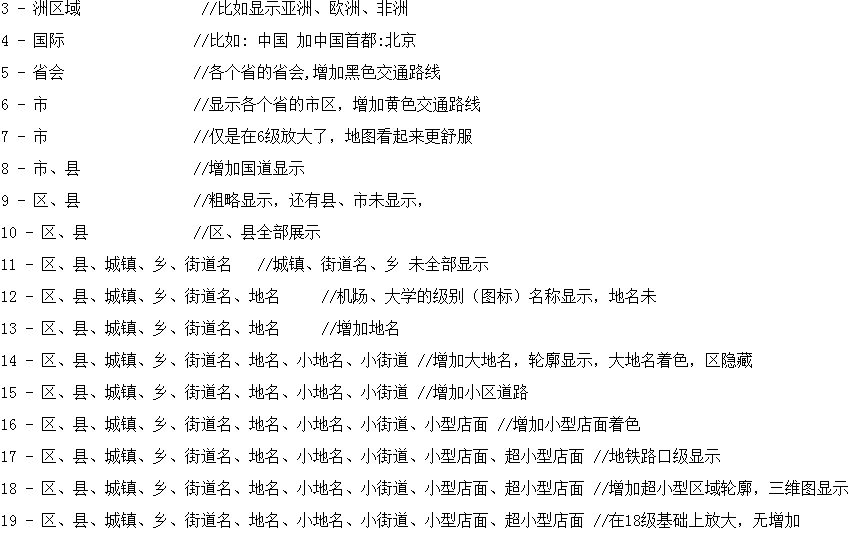

百度地图中Zoom的详细说明:

 地图自动铺满右侧,并且高度全屏且和左侧高度基本一致

 但凡这种情况,首先就考虑要计算浏览器的宽高了,当然你也可以使用一些自适应的UI库,我这里直接自己计算的。这个也很简单,获取浏览器可是部分高度,减去一些固定px的长度部分即可。

关于单页应用中的样式问题

我发现一些以前做惯了多页应用开发的人,现在来做单页应用,他会很迷糊,因为在多页应用的世界,每个界面是独立的,每个界面中的样式是互不影响的。而单页应用,通常是一个入口,其它组件(页面)都是按需加载,样式命名相同就冲突了,也就是合并覆盖。避免的方式呢,组件中只自己用的,添加scoped,如果需要覆盖其它的,就在组件容器的最外层添加一个class或者ID(这个在项目中唯一命名),然后覆盖的样式都写在这个容器样式之下。

如局部样式:

<style scoped>

全局样式:

<style>     .pm-distribution{         .BMap_bubble_title { ......

完整代码:

复制代码

<template>
<div class="pm-distribution">
<h3 class="title">项目分布</h3>
<div class="container" id="container" :style="{height:containerHeight}">             <div class="left">
<div class="top">
<!--行政区域-->
<div class="item fl">
<el-select filterable clearable v-model="districtType" style="width: 140px;margin-left: 5px;">
<el-option v-for="item in districtTypeOptions" :key="item.value" :label="item.label"                                        :value="item.value">
</el-option>
</el-select>
</div>
<!--项目类型-->
<div class="item fl">
<el-select filterable clearable v-model="buildType" style="width: 140px;">                             <el-option v-for="item in buildTypeOptions" :key="item.id" :label="item.name"                                        :value="item.id">
</el-option>
</el-select>
</div>
<div class="item fl" style="margin-left: 10px">
<el-select filterable clearable v-model="buildId" style="width: 190px;">
<el-option v-for="item in buildOptions" :key="item.code" :label="item.name"                                        :value="item.code">                             </el-option>
</el-select>
</div>
<!--查询-->
<div class="item query-submit fl" @click="search">
<i class="el-icon-search"></i> 查 询
</div>
</div>
<div class="header">共{{markers.length}}个项目<span style="float: right;margin-right: 15px;">今日能耗</span></div>
<div class="list" :style="{height:leftHeight}">
<div class="list-context">
<div ref="box" class="list-scroll bmr-y-scroll":style="{height:leftHeight}">
<!-- 项目列表-->
<div class="listItemDIV">
<div class="row" v-for="marker of markers" :key="marker.code" @click="lookDetail(marker,'left')" :class="{active: activeName == marker.name}">
<div                                  class="head-title" v-text="marker.name" :title="marker.name"></div>
<div class="row-content">
<span class="item fl">
<i class="iconfont nhjc-dianli electricity"></i>{{marker.energy}}kWh</span>
<span class="item fl"><i class="iconfont nhjc-shui water"></i>{{marker.water}}m³</span>
<span class="item fl"><i class="iconfont nhjc-qi air"></i>{{marker.air}}m³</span>
</div>
</div>
<div style="clear:both;"></div>
</div>
</div>
</div>
</div>
</div>
<div class="right-context" id="right-context">
<baidu-map :style="{width:map.width,height:map.height}" class="map" ak="这里填你的百度秘钥" :zoom="map.zoom" :center="{lng: map.center.lng, lat: map.center.lat}" @ready="handler" :scroll-wheel-zoom="true">
<!--比例尺控件-->
<bm-scale anchor="BMAP_ANCHOR_TOP_RIGHT"></bm-scale>
<!--缩放控件-->
<bm-navigation anchor="BMAP_ANCHOR_BOTTOM_RIGHT" ></bm-navigation>                     <!--聚合动态添加的点坐标-->
<bm-marker-clusterer :averageCenter="true">
<bm-marker v-for="marker of markers" :key="marker.code" :position="{lng: marker.lng, lat: marker.lat}" @click="lookDetail(marker)"></bm-marker>                     </bm-marker-clusterer>
<!--信息窗体-->
<bm-info-window :position="{lng: infoWindow.info.lng, lat: infoWindow.info.lat}" :title="infoWindow.info.name" :show="infoWindow.show" @close="infoWindowClose" @open="infoWindowOpen">
<p><span class="left">单位面积能耗:</span>
<span class="right">{{infoWindow.info.areaEnergy}}kWh/㎡</span></p>
<p><span class="left">建筑面积:</span>
<span class="right">{{infoWindow.info.area}}㎡</span></p>                         <p><span class="left">电耗:
</span><span class="right">{{infoWindow.info.energy}}kWh</span></p>
<p><span class="left">水耗:</span><span class="right">{{infoWindow.info.water}}m³</span></p>
<p><span class="left">气耗:</span><span class="right">{{infoWindow.info.air}}m³</span></p>
</bm-info-window>
</baidu-map>
</div>
</div>
</div> </template> <script>     import {
buildTypeOptionsData,         districtTypeOptionsData,         buildOptionsData     } from "../views/energyAnalysis/energyConsumptionRanking/energyConsumptionRanking"     import {         getProgramsType     } from "../assets/js/bmr-request";     import GlobalUtil from "../utils/globalUtil";     import PmDistributionService from "../services/pmDistributionService"     //百度地图     import BaiduMap from 'vue-baidu-map/components/map/Map.vue'     import BmScale from 'vue-baidu-map/components/controls/Scale'     import BmNavigation from 'vue-baidu-map/components/controls/Navigation'     import BmMarkerClusterer from  'vue-baidu-map/components/extra/MarkerClusterer'     import BmMarker from 'vue-baidu-map/components/overlays/Marker'     import BmInfoWindow from 'vue-baidu-map/components/overlays/InfoWindow'     export default {         name: "pm-distribution",         components: {             BaiduMap,             BmScale,             BmNavigation,             BmMarkerClusterer,             BmMarker,             BmInfoWindow         },         data() {             return {                 districtType: 0,//行政区域                 districtTypeOptions: GlobalUtil.deepCopy(districtTypeOptionsData),//行政区域选项                 buildType: 0,//项目类型                 buildTypeOptions: buildTypeOptionsData,//项目类型选项                 buildId: '',//项目ID                 buildOptions: buildOptionsData, //项目列表                 searchParams:{                     regions:0,//区域编号                     proType:0,//项目类型                     proCode:'',//项目编号                 },                 map:{                     center: {lng: 118.802422,lat:32.065631},//'南京市',                     zoom: 12,                     width:'1000px',                     height:'710px'                 },                 markers:[],                 infoWindow: {                     lng: 0,                     lat: 0,                     show: false,                     info:{                         air: 0,                         area: 12313,                         areaEnergy: 0.64,                         code: "440300A055",                         energy: 7922.66,                         lat: "32.043433",                         lng: "118.784107",                         name: "市人民检察院",                         water: 0                     },                 },                 activeName: '',                 leftHeight:'540px',                 containerHeight:'700px'             }         },         created() {             this.districtTypeOptions[0].label = '请选择行政区域';             this.getBuildTypes();             this.getSelectPro();         },         mounted() {             this.leftHeight=document.body.clientHeight-300+'px';             this.containerHeight=document.body.clientHeight-150+'px';         },         methods: {             //查询             search() {                 this.searchParams.regions=this.districtType;                 this.searchParams.proType=this.buildType;                 this.searchParams.proCode=this.buildId;                 this.getProPositionMap();             },             infoWindowClose (e) {                 this.infoWindow.show = false             },             infoWindowOpen (e) {                 this.infoWindow.show = true             },             //查看详情             lookDetail(data, target){                 // console.log('data',data)                 this.infoWindow.show =true;                 this.infoWindow.info=data;                 this.activeName = data.name;                 // let This=this;                 //为弹窗口标题添加title                 this.$nextTick(()=>{                     var win=document.querySelector(".BMap_bubble_title");                     win.title = this.activeName;                 })                 if(target=='left'){ //点击的是左侧列表项,则不需要滚动                     this.map.center={lng: data.lng, lat: data.lat};                     this.map.zoom = 15;                     return;                 }                 //滚动到指定元素位置                 this.$nextTick(()=>{                     var obj=document.querySelector(".active");                     var scrollTop=obj.offsetTop;                     this.$refs.box.scrollTop=scrollTop-180;                 })             },             //地图初始化             handler ({BMap, map}) {                 console.log(BMap, map)                 // this.map.center.lng = 118.802422                 // this.map.center.lat = 32.065631                 // this.map.zoom = 12;                 this.map.width= document.getElementById("container").clientWidth-330+'px';                 this.map.height=document.body.clientHeight -160+'px';                 this.getProPositionMap();             },             //获取项目列表             getSelectPro(){                  PmDistributionService.instance().getSelectPro({}).then((res) => {                     if (res.code === 200) {                        console.log('res',res)                         res.data.list.unshift({code:'',name:'请输入项目名称'})                         this.buildOptions=res.data.list;                     } else {                         this.$message({                             message: "获取数据失败",                             type: "error"                         });                     }                 })             },             //项目分布地图             getProPositionMap(){                 PmDistributionService.instance().getProPositionMap(this.searchParams).then((res) => {                     if (res.code === 200) {                         // console.log('res',res)                         this.markers=res.data.list;                     } else {                         this.$message({                             message: "获取数据失败",                             type: "error"                         });                     }                 })             },             //获取项目类型             getBuildTypes() {                 getProgramsType().then(res => {                     //获取楼建筑下拉框                     let temArr = new Array();                     temArr.push({name: '请选择项目类型', id: 0, type: 10})                     res.array.forEach(function (item, index) {                         temArr.push(item);                     })                     console.log('res.array', res.array)                     this.buildTypeOptions = temArr;                 });             },         }     } </script> <style lang="scss" scoped>     $bgBlueColor: #1881bf;     h3.title {         box-sizing: border-box;         height: 34px;         line-height: 34px;         font-size: 16px;         font-weight: 600;         padding: 0 0 0 30px;         border: 1px #E5EEF3 solid;         color: #2274A4;         background: #F5F9F9;         width: 100%;         text-align: left;     }     .container {         margin: 0 auto;         min-width: 1366px;         padding: 0px;         min-height: 710px;         .left {             width: 320px;             float: left;             .header {                 width: 300px;                 clear: left;                 height: 34px;                 line-height: 34px;                 color: black;                 background: #F5F9F9;                 padding-left: 20px;             }             .top {                 height: 70px;                 padding: 8px 5px 12px 5px;             }         }         .right-context {             float: left;         }         .item {             margin: 5px;             height: 28px;             line-height: 28px;             .electricity{                 color: #FFD670;             }             .water{                 color:#4EB9DB;             }             .air{                 color:#F39795;             }             .iconfont{                 font-size: 22px;             }         }         .query-submit {             width: 90px;             border-radius: 28px;             background: $bgBlueColor;             color: #fff;             text-align: center;             cursor: pointer;         }         .list{             .item{                 width: 93px;                 height: 30px;                 line-height: 30px;                 display: block;             }             .item.fl{                 float: left;             }             .list-context{                 border-radius:5px;margin-top:10px;background:white;                 .list-scroll{                     margin-top:10px;overflow-y:auto;min-height:537px;overflow-x: hidden;                     .row{                         float:left;width:320px;                         cursor: pointer;                         .head-title{                             overflow: hidden;text-overflow: ellipsis;white-space: nowrap;font-size:16px;color:#1781BF;font-weight:400; padding-left: 20px;                             height: 30px;                             line-height: 30px;                         }                         .row-content{                             overflow: hidden;text-overflow: ellipsis;white-space: nowrap;padding-bottom:10px;font-size:12px;color:rgb(128, 128, 128);                             border-bottom: 1px solid #eee; padding-left: 10px;                         }                     }                     .row.active{                         background-color: #CFDDF3;                     }                 }             }         }         .map{            min-width: 800px; width:1000px;height:710px;float:left;background:white;border-radius:5px;margin-left:10px;             .right{                text-align: left;             }             .left{                 width: 100px;             }         }     } </style> <style lang="scss">     .pm-distribution{         .BMap_bubble_title {             color: #2DB7F5 !important;             font-size: 16px;             font-weight: 400;             margin-bottom: 8px;             overflow: hidden;             text-overflow:ellipsis;             white-space: nowrap;             width: 220px !important;         }     } </style>

复制代码View Code

  说明:本界面所有功能是一天之内赶出来的,所以代码就凑合吧。其它的一些封装的组件代码没有贴出来,因为本篇重点是介绍地图的使用。我见过一些所谓前端工程师的代码,也就那样,有些还时不时的弄一些骚操作,请允许我自恋一下,O(∩_∩)O哈哈~。虽然我不是专业的前端,但是不管是写后端代码还是前端代码,多少要有点追求,有时候为了赶进度,快得了一时,其实误了后面更多时间,很多项目都是被怎么快怎么来玩死的,每天想着以后再重构,以后再重构,到后面就不了了之了..........

作者:邹琼俊

原文出处:https://www.cnblogs.com/jiekzou/p/10485604.html
