Spring Cloud Security:Oauth2使用入门

SpringBoot实战电商项目mall(20k+star)地址:https://github.com/macrozheng/mall

摘要

Spring Cloud Security 为构建安全的SpringBoot应用提供了一系列解决方案,结合Oauth2可以实现单点登录、令牌中继、令牌交换等功能,本文将对其结合Oauth2入门使用进行详细介绍。

OAuth2 简介

OAuth 2.0是用于授权的行业标准协议。OAuth 2.0为简化客户端开发提供了特定的授权流,包括Web应用、桌面应用、移动端应用等。

OAuth2 相关名词解释

  • Resource owner(资源拥有者):拥有该资源的最终用户,他有访问资源的账号密码;
  • Resource server(资源服务器):拥有受保护资源的服务器,如果请求包含正确的访问令牌,可以访问资源;
  • Client(客户端):访问资源的客户端,会使用访问令牌去获取资源服务器的资源,可以是浏览器、移动设备或者服务器;
  • Authorization server(认证服务器):用于认证用户的服务器,如果客户端认证通过,发放访问资源服务器的令牌。

四种授权模式

  • Authorization Code(授权码模式):正宗的OAuth2的授权模式,客户端先将用户导向认证服务器,登录后获取授权码,然后进行授权,最后根据授权码获取访问令牌;
  • Implicit(简化模式):和授权码模式相比,取消了获取授权码的过程,直接获取访问令牌;
  • Resource Owner Password Credentials(密码模式):客户端直接向用户获取用户名和密码,之后向认证服务器获取访问令牌;
  • Client Credentials(客户端模式):客户端直接通过客户端认证(比如client_id和client_secret)从认证服务器获取访问令牌。

两种常用的授权模式

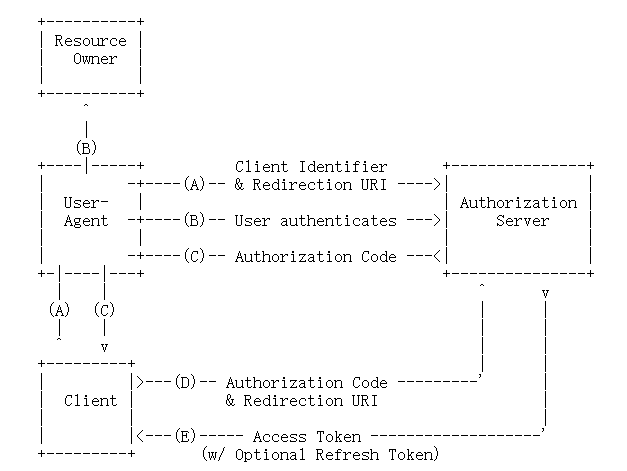

授权码模式

  • (A)客户端将用户导向认证服务器;
  • (B)用户在认证服务器进行登录并授权;
  • ©认证服务器返回授权码给客户端;
  • (D)客户端通过授权码和跳转地址向认证服务器获取访问令牌;
  • (E)认证服务器发放访问令牌(有需要带上刷新令牌)。

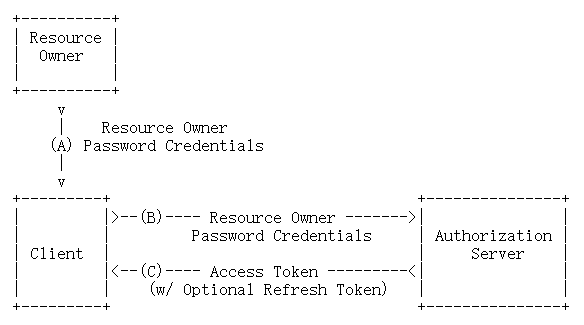

密码模式

  • (A)客户端从用户获取用户名和密码;
  • (B)客户端通过用户的用户名和密码访问认证服务器;
  • ©认证服务器返回访问令牌(有需要带上刷新令牌)。

Oauth2的使用

创建oauth2-server模块

这里我们创建一个oauth2-server模块作为认证服务器来使用。

  • 在pom.xml中添加相关依赖:
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-oauth2</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-security</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
  • 在application.yml中进行配置:
server:
  port: 9401
spring:
  application:
    name: oauth2-service
  • 添加UserService实现UserDetailsService接口,用于加载用户信息:
/**
 * Created by macro on 2019/9/30.
 */
@Service
public class UserService implements UserDetailsService {
    private List<User> userList;
    @Autowired
    private PasswordEncoder passwordEncoder;

    @PostConstruct
    public void initData() {
        String password = passwordEncoder.encode("123456");
        userList = new ArrayList<>();
        userList.add(new User("macro", password, AuthorityUtils.commaSeparatedStringToAuthorityList("admin")));
        userList.add(new User("andy", password, AuthorityUtils.commaSeparatedStringToAuthorityList("client")));
        userList.add(new User("mark", password, AuthorityUtils.commaSeparatedStringToAuthorityList("client")));
    }

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        List<User> findUserList = userList.stream().filter(user -> user.getUsername().equals(username)).collect(Collectors.toList());
        if (!CollectionUtils.isEmpty(findUserList)) {
            return findUserList.get(0);
        } else {
            throw new UsernameNotFoundException("用户名或密码错误");
        }
    }
}
  • 添加认证服务器配置,使用@EnableAuthorizationServer注解开启:
/**
 * 认证服务器配置
 * Created by macro on 2019/9/30.
 */
@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter {

    @Autowired
    private PasswordEncoder passwordEncoder;

    @Autowired
    private AuthenticationManager authenticationManager;

    @Autowired
    private UserService userService;

    /**
     * 使用密码模式需要配置
     */
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
        endpoints.authenticationManager(authenticationManager)
                .userDetailsService(userService);
    }

    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.inMemory()
                .withClient("admin")//配置client_id
                .secret(passwordEncoder.encode("admin123456"))//配置client_secret
                .accessTokenValiditySeconds(3600)//配置访问token的有效期
                .refreshTokenValiditySeconds(864000)//配置刷新token的有效期
                .redirectUris("http://www.baidu.com")//配置redirect_uri,用于授权成功后跳转
                .scopes("all")//配置申请的权限范围
                .authorizedGrantTypes("authorization_code","password");//配置grant_type,表示授权类型
    }
}
  • 添加资源服务器配置,使用@EnableResourceServer注解开启:
/**
 * 资源服务器配置
 * Created by macro on 2019/9/30.
 */
@Configuration
@EnableResourceServer
public class ResourceServerConfig extends ResourceServerConfigurerAdapter {

    @Override
    public void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest()
                .authenticated()
                .and()
                .requestMatchers()
                .antMatchers("/user/**");//配置需要保护的资源路径
    }
}
  • 添加SpringSecurity配置,允许认证相关路径的访问及表单登录:
/**
 * SpringSecurity配置
 * Created by macro on 2019/10/8.
 */
@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Override
    public void configure(HttpSecurity http) throws Exception {
        http.csrf()
                .disable()
                .authorizeRequests()
                .antMatchers("/oauth/**", "/login/**", "/logout/**")
                .permitAll()
                .anyRequest()
                .authenticated()
                .and()
                .formLogin()
                .permitAll();
    }
}

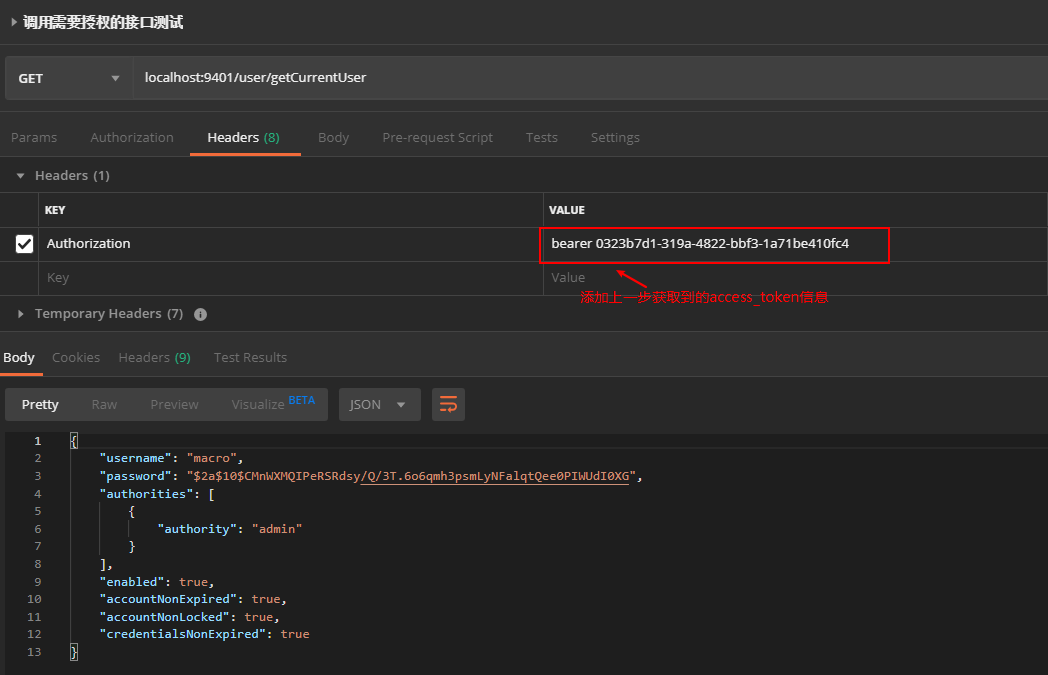

  • 添加需要登录的接口用于测试:
/**
 * Created by macro on 2019/9/30.
 */
@RestController
@RequestMapping("/user")
public class UserController {
    @GetMapping("/getCurrentUser")
    public Object getCurrentUser(Authentication authentication) {
        return authentication.getPrincipal();
    }
}

授权码模式使用

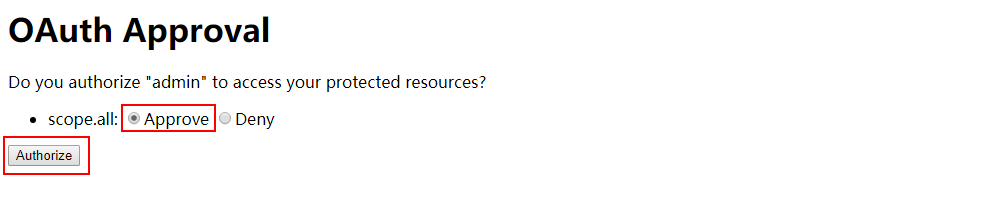

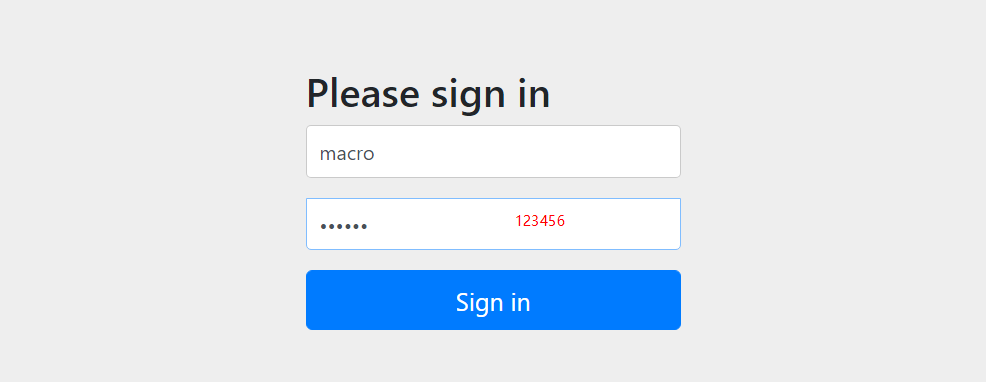

  • 登录后进行授权操作:

  • 之后会浏览器会带着授权码跳转到我们指定的路径:
https://www.baidu.com/?code=eTsADY&state=normal
  • 使用授权码请求该地址获取访问令牌:http://localhost:9401/oauth/token

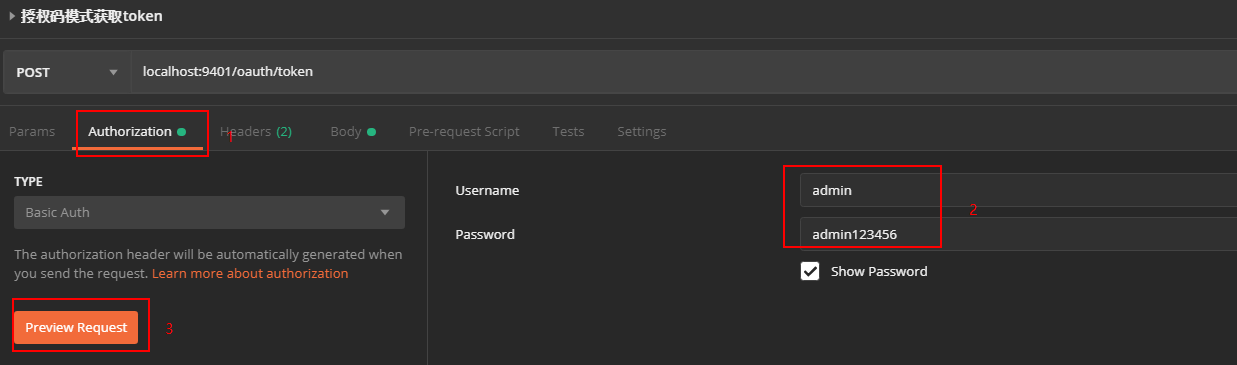

  • 使用Basic认证通过client_id和client_secret构造一个Authorization头信息;

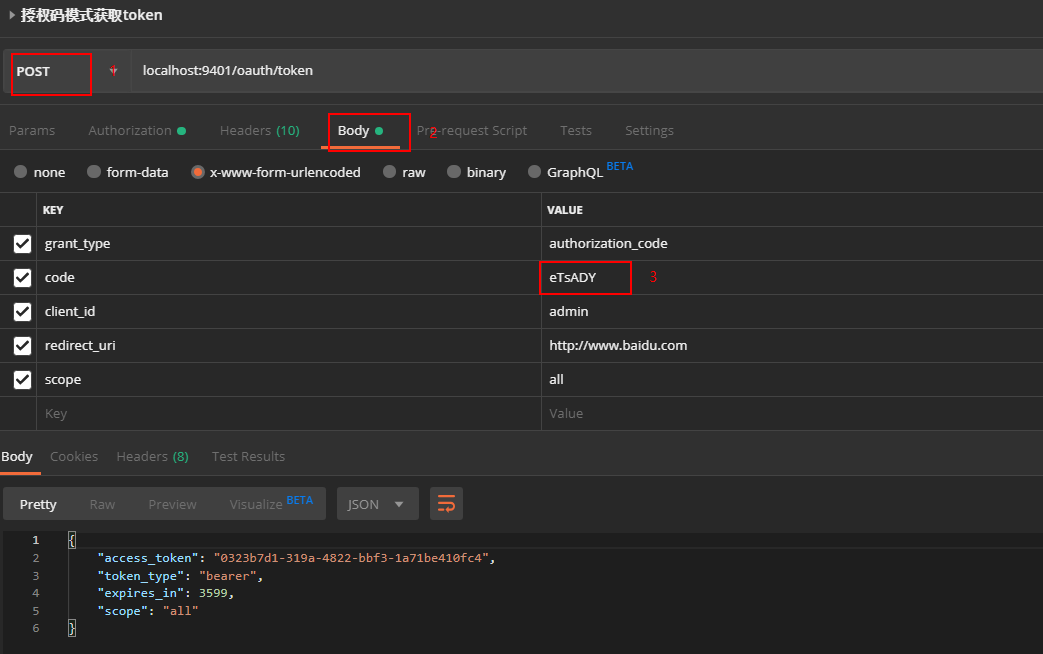

  • 在body中添加以下参数信息,通过POST请求获取访问令牌;

密码模式使用

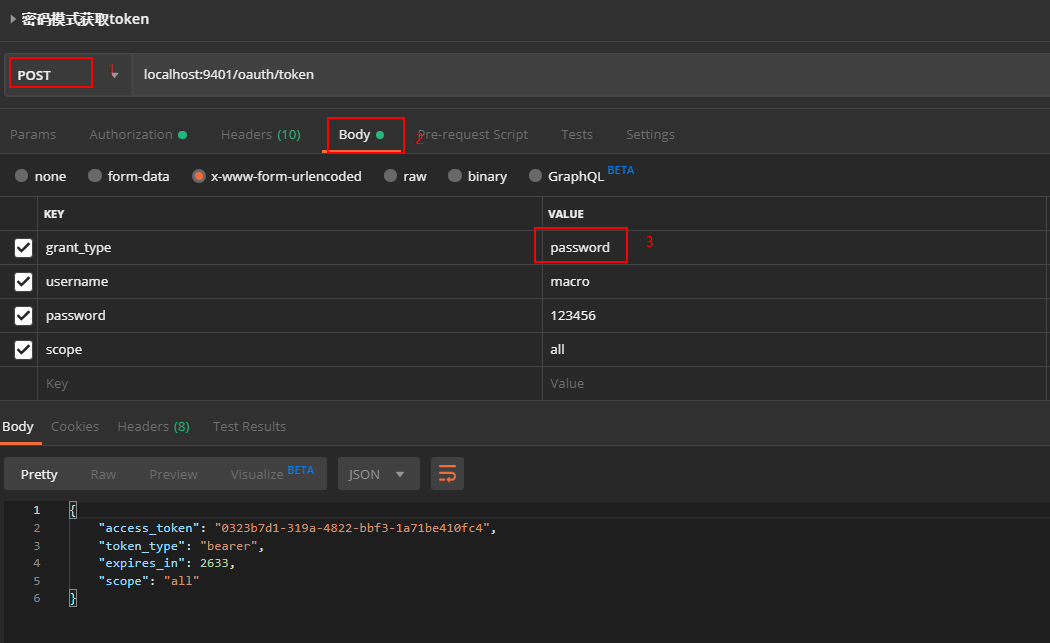

  • 使用密码请求该地址获取访问令牌:http://localhost:9401/oauth/token

  • 使用Basic认证通过client_id和client_secret构造一个Authorization头信息;

  • 在body中添加以下参数信息,通过POST请求获取访问令牌;

使用到的模块

springcloud-learning
└── oauth2-server -- oauth2认证测试服务

项目源码地址

本文 GitHub https://github.com/macrozheng/mall-learning 已经收录,欢迎大家Star!
