移动端图可视化开发利器——手把手教你写F6

标签:
前端工具

将知识、内容转换为图的形式进行归纳输出,成为越来越主流的方式。使用图可视化技术可以帮助我们更好的整理日常面对的大量信息。而手机,作为我们携带率最高的设备,天然的是一个优秀的图可视化输出载体。

现有的移动端图可视化技术有Antv旗下的F2、F6。F2主要专注于数据分析的统计图,而F6专注与各种场景的关系图。两者各有侧重。F6 是一个简单、易用、完备的移动端图可视化引擎,它在高定制能力的基础上,提供了一系列设计优雅、便于使用的图可视化解决方案。能帮助开发者搭建属于自己的图可视化、图分析、或图编辑器应用。如果您希望将内容通过流程图、知识图谱、思维导图等形式进行输出,并希望可以方便的实现对图的操控,那么建议您一定要尝试一下F6。

欢迎star和提交issue

github.com/antvis/F6

基本概念

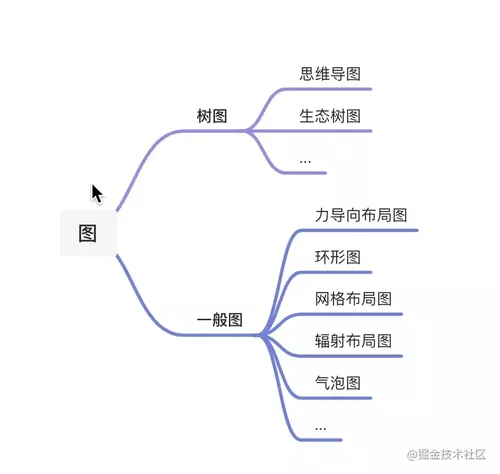

对于图的分类,不同的角度会有不同的分类。我们从功能特点的角度,对图进行分类的话,可以分为以下几类

https://img1.sycdn.imooc.com//6151e6420001a1f407840742.jpg

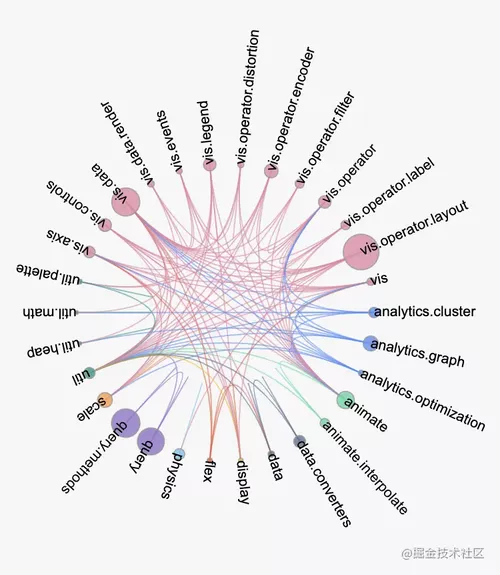

图的种类很多,但是都有一个共同的特点,就是都是由若干节点组成的。节点表示我们绘制的实体,而边表示实体之间的关系。举个例子,下图就是我们今天将要带大家绘制的环形弧线图。图中带英文的圆圈就是节点,表示一个特定的实体。而连接不同圆圈的弧线就是边,表示实体与实体间由联系。

所谓环形弧线图,环形,指节点围绕同一个圆心排列。而弧线,指节点与节点之间的边是弧线的形式表现。https://img1.sycdn.imooc.com//6151e643000178f807500862.jpg

如何使用F6绘制可视化图

那么我们应该如何通过F6来绘制这个看着很复杂的环形弧线图呢?首先可以想到,我们要给F6提供数据。我们要告诉F6,我们需要画哪些节点,哪些边,这些节点的名字,哪些节点之间有关系。具体在代码层面,我们需要提供以下结构的数据

{

  nodes:[],

  edges:[]

}


  • nodes是一个对象数组,里面的每一个对象都表示一个节点

  • edges是一个对象数组,里面的每一个对象都表示一条边

更具体一点,下面一段数据,就可以表示有“sea”和“water”两个节点,以及一条连接这两个节点的边。

{

  "nodes": [

    {

      "id":"water"

    },

    {

      "id":"sea"

    }

  ],

  "edges": [

    {

      "source":"water",

      "target":"sea"

    }

  ]

}


有了数据之后,我们就需要调用F6来进行绘图。这时候我们就需要引入数据,调用F6接口,并把数据给F6,让它帮我们画出想要的图。从代码层面的角度来看,我们需要在js文件中完成以下三件事:

  1. 新建实例:new F6.Graph( )来新建一个图的实例graph

  2. 传入数据:graph.data( ) 传入画图的数据

  3. 画图:graph.render( ) 进行绘制。

怎么说,是不是很简单!其实核心的部分也就在第一步,新建实例。在这一步需要传递一些参数,比如图是否居中,自定义点,自定义边,整个图的大小,使用的插件,布局等~,举个栗子🌰

this.graph = new F6.Graph({

  context: this.context,

  renderer: this.renderer,

  width,

  height,

  pixelRatio,

  fitView,

  modes: {

    default:['drag-canvas', 'drag-node']

  }

  defaultNode:{},

  defaultEdge:{},

  layout:{},

  plugin:[]

})


上面就是一个简单的新建图的实例的例子,参数看着有点多,但是每一个都非常好理解:

  • width和height就是设置画出来的图的宽和高

  • pixelRatio就是缩放比例

  • fitView, 适应屏幕

  • modes 图的拖拽模式,如可选拖拽canvas、拖拽节点

  • defaultnode:默认的节点样式

  • defaultEdge:默认的边样式

  • layout,设置整个图的布局

  • plugin,使用拓展的插件功能,如时间轴,鱼眼放大镜等拓展功能

新建好实例后,我们给这个实例传递我们前面写好的数据。然后再调用实例的render方法,就能够将我们想要的图画出来了!

前面介绍了使用F6画图的一些核心步骤。可以说看到这里,F6画图的流程你都以及掌握了。接下来我们就进入实战环节,将我们之前立的flag:环形弧线图给实现出来!

支付宝小程序上使用F6

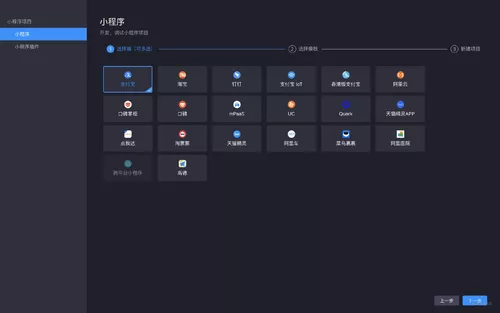

我们以支付宝小程序为例,首先我们在支付宝小程序开发者工具上,新建一个支付宝小程序的应用:选择支付宝小程序

https://img1.sycdn.imooc.com//6151e68c00012bf228801800.jpg

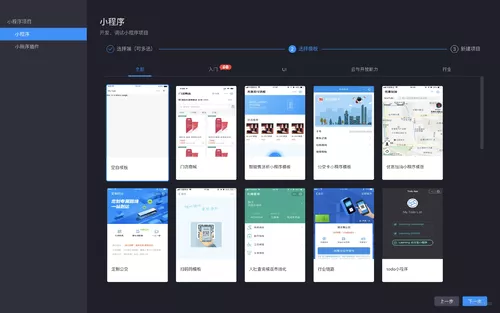

选择一个最简单的空白模版,并为这个项目起一个响亮的名字,名字最好使用英文命名https://img1.sycdn.imooc.com//6151e68d0001679228801800.jpg

完成之后,我们就能得到一个支付宝小程序的空白模版了。接着,我们去控制台,使用npm安装两个需要的包:@antv/f6@antv/f6-alipay

  • npm init

  • npm install @antv/f6

  • npm install @antv/f6-alipay

安装好之后,就可以开始写代码啦~

我们在pages/ 下新建一个文件夹 circularArcDiagram/。并且创建一些必要的文件。文件的结构如下:

pages/
    circularArcDiagram/
    index.js
    index.axml
    index.acss
    index.json
    data.js

绘制一个图大概需要的文件就是上面的5个文件。 没错,我们这次要画一个环形弧线图,最终的实现目录如下:

index.axml

我们首先来看一下index.axml。F6绘图是绘制在canavs上的,我们需要设定canvas画布的宽,高,放缩比例,回调函数等基本信息。

<f6-canvas

  width="{{width}}"

  height="{{height}}"

  forceMini="{{forceMini}}"

  pixelRatio="{{pixelRatio}}"

  onTouchEvent="handleTouch"

  onInit="handleInit"

></f6-canvas>


index.css

然后就是平平无奇的css,这个主要是控制页面的一个背景颜色和绘制出来的canvas图的padding

page {

  background-color: #f7f7f7;

  border: 1px solid rgba(0,0,0,0);

  box-sizing: border-box;

}


.page-section-demo {

  padding: 32rpx;

}


index.json

index.json: 这里主要是控制使用的组件,我们在axml中使用的就是在这里引入的。

{

  "defaultTitle": "环形弧线图",

  "usingComponents": {

    "f6-canvas": "@antv/f6-alipay/es/container/container"

  }

}


index.js

最后是控制主要逻辑的index.js文件,由于js文件是我们使用F6的大头,我们一点点说 首先是我们先前提到的,使用F6的三部曲,new、data、render

//new,新建F6实例

this.graph = new F6.Graph({

  context: this.ctx,

  renderer: this.renderer,

  width,

  height,

  pixelRatio,

  linkCenter: true,

  fitView: true,

  modes: {

    default: [

      {

        type: 'edge-tooltip',

        formatText: function formatText(model) {

          const text = `source: ${model.sourceName}<br/> target: ${model.targetName}`;

          return text;

        },

      },

    ],

  },

  defaultNode: {

    style: {

      opacity: 0.8,

      lineWidth: 1,

      stroke: '#999',

    },

  },

  defaultEdge: {

    size: 1,

    color: '#e2e2e2',

    style: {

      opacity: 0.6,

      lineAppendWidth: 3,

    },

  },

});


//data,处理数据

this.graph.data(data)


//render,绘图

this.render()


以上就是主体结构,完整的代码如下:

import F6 from '@antv/f6';

import data from './data';

import mds from '@antv/f6/dist/extends/layout/mdsLayout';

/**

 * 环形弧线图

 */

Page({

  canvas: null,

  ctx: null,

  renderer: '', // mini、mini-native等,F6需要,标记环境

  isCanvasInit: false, // canvas是否准备好了

  graph: null,



  data: {

    width: 375,

    height: 600,

    pixelRatio: 2,

    forceMini: false,

  },


  onLoad() {

    // 注册布局

    F6.registerLayout('mds', mds);

    // 同步获取window的宽高

    const { windowWidth, windowHeight, pixelRatio } = my.getSystemInfoSync();


    this.setData({

      width: windowWidth,

      height: windowHeight,

      pixelRatio,

    });

  },


  /**

   * 初始化cnavas回调,缓存获得的context

   * @param {*} ctx 绘图context

   * @param {*} rect 宽高信息

   * @param {*} canvas canvas对象,在render为mini时为null

   * @param {*} renderer 使用canvas 1.0还是canvas 2.0,mini | mini-native

   */

  handleInit(ctx, rect, canvas, renderer) {

    this.isCanvasInit = true;

    this.ctx = ctx;

    this.renderer = renderer;

    this.canvas = canvas;

    this.updateChart();

  },


  /**

   * canvas派发的事件,转派给graph实例

   */

  handleTouch(e) {

    this.graph && this.graph.emitEvent(e);

  },


  updateChart() {

    const { width, height, pixelRatio } = this.data;

    const colors = [

      'rgb(91, 143, 249)',

      'rgb(90, 216, 166)',

      'rgb(93, 112, 146)',

      'rgb(246, 189, 22)',

      'rgb(232, 104, 74)',

      'rgb(109, 200, 236)',

      'rgb(146, 112, 202)',

      'rgb(255, 157, 77)',

      'rgb(38, 154, 153)',

      'rgb(227, 137, 163)',

    ];


    // 创建F6实例

    this.graph = new F6.Graph({

      context: this.ctx,

      renderer: this.renderer,

      width,

      height,

      pixelRatio,

      linkCenter: true,

      fitView: true,

      modes: {

        default: [

          {

            type: 'edge-tooltip',

            formatText: function formatText(model) {

              const text = `source: ${model.sourceName}<br/> target: ${model.targetName}`;

              return text;

            },

          },

        ],

      },

      defaultNode: { //默认节点样式

        style: {

          opacity: 0.8,

          lineWidth: 1,

          stroke: '#999',

        },

      },

      defaultEdge: { //默认边样式

        size: 1,

        color: '#e2e2e2',

        style: {

          opacity: 0.6,

          lineAppendWidth: 3,

        },

      },

    });


    // 处理数据

    function scaleNodeProp(nodes, propName, refPropName, dataRange, outRange) {

      const outLength = outRange[1] - outRange[0];

      const dataLength = dataRange[1] - dataRange[0];

      nodes.forEach(function(n) {

        n[propName] = ((n[refPropName] - dataRange[0]) * outLength) / dataLength + outRange[0];

      });

    }


    const origin = [width / 2, height / 2];

    const radius = width < height ? width / 3 : height / 3;

    const { edges } = data;

    const { nodes } = data;

    const nodeMap = new Map();

    const clusterMap = new Map();

    let clusterId = 0;

    const n = nodes.length;

    const angleSep = (Math.PI * 2) / n;

    nodes.forEach(function(node, i) {

      const angle = i * angleSep;

      node.x = radius * Math.cos(angle) + origin[0];

      node.y = radius * Math.sin(angle) + origin[1];

      node.angle = angle;

      nodeMap.set(node.id, node);

      // cluster

      if (node.cluster && clusterMap.get(node.cluster) === undefined) {

        clusterMap.set(node.cluster, clusterId);

        clusterId++;

      }

      const id = clusterMap.get(node.cluster);

      if (node.style) {

        node.style.fill = colors[id % colors.length];

      } else {

        node.style = {

          fill: colors[id % colors.length],

        };

      }

      // label

      node.label = node.name;

      node.labelCfg = {

        position: 'center',

        style: {

          rotate: angle,

          rotateCenter: 'lefttop',

          textAlign: 'start',

        },

      };

    });

    edges.forEach((edge) => {

      edge.type = 'quadratic';

      const source = nodeMap.get(edge.source);

      const target = nodeMap.get(edge.target);

      edge.controlPoints = [

        {

          x: origin[0],

          y: origin[1],

        },

      ];

      edge.color = source.style.fill;

      edge.sourceName = source.name;

      edge.targetName = target.name;

    });


    // map the value to node size

    let maxValue = -9999;

    let minValue = 9999;

    nodes.forEach(function(k) {

      if (maxValue < k.value) maxValue = k.value;

      if (minValue > k.value) minValue = k.value;

    });

    const sizeRange = [3, 30];

    const sizeDataRange = [minValue, maxValue];

    scaleNodeProp(nodes, 'size', 'value', sizeDataRange, sizeRange);


    this.graph.data(data);

    this.graph.render();

    this.graph.fitView();

  },

});


data.json

最后,本次绘图使用的数据如下:

export default {

  nodes: [

    {

      id: '0',

      name: 'analytics.cluster',

      cluster: 'analytics',

      value: 21,

    },

    {

      id: '1',

      name: 'analytics.graph',

      cluster: 'analytics',

      value: 34,

    },

    {

      id: '2',

      name: 'analytics.optimization',

      cluster: 'analytics',

      value: 8,

    },

    {

      id: '3',

      name: 'animate',

      cluster: 'animate',

      value: 40,

    },

    {

      id: '4',

      name: 'animate.interpolate',

      cluster: 'animate',

      value: 18,

    },

    {

      id: '5',

      name: 'data.converters',

      cluster: 'data',

      value: 25,

    },

    {

      id: '6',

      name: 'data',

      cluster: 'data',

      value: 10,

    },

    {

      id: '7',

      name: 'display',

      cluster: 'display',

      value: 4,

    },

    {

      id: '8',

      name: 'flex',

      cluster: 'flex',

      value: 6,

    },

    {

      id: '9',

      name: 'physics',

      cluster: 'physics',

      value: 22,

    },

    {

      id: '10',

      name: 'query',

      cluster: 'query',

      value: 67,

    },

    {

      id: '11',

      name: 'query.methods',

      cluster: 'query',

      value: 71,

    },

    {

      id: '12',

      name: 'scale',

      cluster: 'scale',

      value: 33,

    },

    {

      id: '13',

      name: 'util',

      cluster: 'util',

      value: 23,

    },

    {

      id: '14',

      name: 'util.heap',

      cluster: 'util',

      value: 2,

    },

    {

      id: '15',

      cluster: 'util',

      name: 'util.math',

      value: 2,

    },

    {

      id: '16',

      name: 'util.palette',

      cluster: 'util',

      value: 5,

    },

    {

      id: '17',

      name: 'vis.axis',

      cluster: 'vis',

      value: 24,

    },

    {

      id: '18',

      name: 'vis.controls',

      cluster: 'vis',

      value: 28,

    },

    {

      id: '19',

      name: 'vis.data',

      cluster: 'vis',

      value: 70,

    },

    {

      id: '20',

      name: 'vis.data.render',

      cluster: 'vis',

      value: 11,

    },

    {

      id: '21',

      name: 'vis.events',

      cluster: 'vis',

      value: 8,

    },

    {

      id: '22',

      name: 'vis.legend',

      cluster: 'vis',

      value: 27,

    },

    {

      id: '23',

      name: 'vis.operator.distortion',

      cluster: 'vis',

      value: 9,

    },

    {

      id: '24',

      name: 'vis.operator.encoder',

      cluster: 'vis',

      value: 30,

    },

    {

      id: '25',

      name: 'vis.operator.filter',

      cluster: 'vis',

      value: 17,

    },

    {

      id: '26',

      name: 'vis.operator',

      cluster: 'vis',

      value: 27,

    },

    {

      id: '27',

      name: 'vis.operator.label',

      cluster: 'vis',

      value: 18,

    },

    {

      id: '28',

      name: 'vis.operator.layout',

      cluster: 'vis',

      value: 91,

    },

    {

      id: '29',

      name: 'vis',

      cluster: 'vis',

      value: 13,

    },

  ],

  edges: [

    {

      source: '10',

      target: '10',

      sourceWeight: 61,

      targetWeight: 61,

    },

    {

      source: '11',

      target: '11',

      sourceWeight: 39,

      targetWeight: 39,

    },

    {

      source: '3',

      target: '3',

      sourceWeight: 30,

      targetWeight: 30,

    },

    {

      source: '19',

      target: '19',

      sourceWeight: 26,

      targetWeight: 26,

    },

    {

      source: '13',

      target: '13',

      sourceWeight: 23,

      targetWeight: 23,

    },

    {

      source: '9',

      target: '9',

      sourceWeight: 22,

      targetWeight: 22,

    },

    {

      source: '12',

      target: '12',

      sourceWeight: 19,

      targetWeight: 19,

    },

    {

      source: '28',

      target: '19',

      sourceWeight: 34,

      targetWeight: 0,

    },

    {

      source: '4',

      target: '4',

      sourceWeight: 16,

      targetWeight: 16,

    },

    {

      source: '11',

      target: '10',

      sourceWeight: 32,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '28',

      sourceWeight: 14,

      targetWeight: 14,

    },

    {

      source: '18',

      target: '18',

      sourceWeight: 12,

      targetWeight: 12,

    },

    {

      source: '26',

      target: '26',

      sourceWeight: 11,

      targetWeight: 11,

    },

    {

      source: '28',

      target: '13',

      sourceWeight: 20,

      targetWeight: 0,

    },

    {

      source: '5',

      target: '6',

      sourceWeight: 17,

      targetWeight: 2,

    },

    {

      source: '19',

      target: '13',

      sourceWeight: 17,

      targetWeight: 0,

    },

    {

      source: '17',

      target: '17',

      sourceWeight: 7,

      targetWeight: 7,

    },

    {

      source: '6',

      target: '6',

      sourceWeight: 7,

      targetWeight: 7,

    },

    {

      source: '12',

      target: '13',

      sourceWeight: 14,

      targetWeight: 0,

    },

    {

      source: '1',

      target: '19',

      sourceWeight: 14,

      targetWeight: 0,

    },

    {

      source: '5',

      target: '5',

      sourceWeight: 7,

      targetWeight: 7,

    },

    {

      source: '21',

      target: '19',

      sourceWeight: 6,

      targetWeight: 4,

    },

    {

      source: '25',

      target: '19',

      sourceWeight: 10,

      targetWeight: 0,

    },

    {

      source: '0',

      target: '0',

      sourceWeight: 5,

      targetWeight: 5,

    },

    {

      source: '3',

      target: '13',

      sourceWeight: 9,

      targetWeight: 0,

    },

    {

      source: '20',

      target: '19',

      sourceWeight: 5,

      targetWeight: 4,

    },

    {

      source: '19',

      target: '12',

      sourceWeight: 9,

      targetWeight: 0,

    },

    {

      source: '0',

      target: '19',

      sourceWeight: 8,

      targetWeight: 0,

    },

    {

      source: '24',

      target: '19',

      sourceWeight: 8,

      targetWeight: 0,

    },

    {

      source: '22',

      target: '22',

      sourceWeight: 4,

      targetWeight: 4,

    },

    {

      source: '24',

      target: '24',

      sourceWeight: 4,

      targetWeight: 4,

    },

    {

      source: '26',

      target: '3',

      sourceWeight: 7,

      targetWeight: 0,

    },

    {

      source: '24',

      target: '16',

      sourceWeight: 7,

      targetWeight: 0,

    },

    {

      source: '16',

      target: '16',

      sourceWeight: 3,

      targetWeight: 3,

    },

    {

      source: '10',

      target: '13',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '7',

      target: '7',

      sourceWeight: 3,

      targetWeight: 3,

    },

    {

      source: '22',

      target: '13',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '20',

      target: '20',

      sourceWeight: 3,

      targetWeight: 3,

    },

    {

      source: '1',

      target: '26',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '27',

      target: '19',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '12',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '22',

      target: '7',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '3',

      sourceWeight: 6,

      targetWeight: 0,

    },

    {

      source: '17',

      target: '7',

      sourceWeight: 5,

      targetWeight: 0,

    },

    {

      source: '26',

      target: '13',

      sourceWeight: 5,

      targetWeight: 0,

    },

    {

      source: '27',

      target: '13',

      sourceWeight: 5,

      targetWeight: 0,

    },

    {

      source: '1',

      target: '13',

      sourceWeight: 5,

      targetWeight: 0,

    },

    {

      source: '1',

      target: '3',

      sourceWeight: 5,

      targetWeight: 0,

    },

    {

      source: '26',

      target: '29',

      sourceWeight: 3,

      targetWeight: 2,

    },

    {

      source: '22',

      target: '16',

      sourceWeight: 5,

      targetWeight: 0,

    },

    {

      source: '18',

      target: '21',

      sourceWeight: 4,

      targetWeight: 0,

    },

    {

      source: '22',

      target: '12',

      sourceWeight: 4,

      targetWeight: 0,

    },

    {

      source: '23',

      target: '23',

      sourceWeight: 2,

      targetWeight: 2,

    },

    {

      source: '17',

      target: '29',

      sourceWeight: 2,

      targetWeight: 2,

    },

    {

      source: '28',

      target: '17',

      sourceWeight: 4,

      targetWeight: 0,

    },

    {

      source: '15',

      target: '15',

      sourceWeight: 2,

      targetWeight: 2,

    },

    {

      source: '17',

      target: '12',

      sourceWeight: 4,

      targetWeight: 0,

    },

    {

      source: '27',

      target: '27',

      sourceWeight: 2,

      targetWeight: 2,

    },

    {

      source: '14',

      target: '14',

      sourceWeight: 2,

      targetWeight: 2,

    },

    {

      source: '18',

      target: '29',

      sourceWeight: 3,

      targetWeight: 1,

    },

    {

      source: '25',

      target: '26',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '9',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '27',

      target: '7',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '24',

      target: '12',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '17',

      target: '13',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '18',

      target: '13',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '20',

      target: '13',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '0',

      target: '13',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '24',

      target: '13',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '19',

      target: '6',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '29',

      target: '3',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '25',

      target: '3',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '24',

      target: '3',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '17',

      target: '3',

      sourceWeight: 3,

      targetWeight: 0,

    },

    {

      source: '0',

      target: '15',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '26',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '24',

      target: '26',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '16',

      target: '13',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '1',

      target: '14',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '29',

      target: '21',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '21',

      target: '21',

      sourceWeight: 1,

      targetWeight: 1,

    },

    {

      source: '29',

      target: '19',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '19',

      target: '14',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '4',

      target: '13',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '19',

      target: '15',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '8',

      target: '17',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '13',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '18',

      target: '19',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '1',

      target: '1',

      sourceWeight: 1,

      targetWeight: 1,

    },

    {

      source: '23',

      target: '17',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '23',

      target: '19',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '0',

      target: '3',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '18',

      target: '3',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '19',

      target: '3',

      sourceWeight: 2,

      targetWeight: 0,

    },

    {

      source: '29',

      target: '13',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '8',

      target: '29',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '21',

      target: '3',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '22',

      target: '3',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '3',

      target: '4',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '29',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '22',

      target: '19',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '23',

      target: '3',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '26',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '19',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '26',

      target: '19',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '17',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '27',

      target: '3',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '5',

      target: '13',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '12',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '20',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '18',

      target: '28',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '23',

      target: '21',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '8',

      target: '6',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '2',

      target: '3',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '1',

      target: '29',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '23',

      target: '28',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '6',

      target: '13',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '25',

      target: '13',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '8',

      target: '7',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '7',

      target: '13',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '27',

      target: '26',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '18',

      target: '7',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '0',

      target: '26',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '19',

      target: '7',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '8',

      target: '19',

      sourceWeight: 1,

      targetWeight: 0,

    },

    {

      source: '28',

      target: '29',

      sourceWeight: 1,

      targetWeight: 0,

    },

  ],

};


微信小程序

微信小程序和支付宝小程序的代码基本是一致的。对于在微信小程序上使用F6画图,大家可以参考我们写好的一些demos:github.com/antvis/F6/t…

对于更加丰富的图感兴趣,可以访问官网:f6.antv.vision/ 或者github:github.com/antvis/F6


作者:AntCredit
链接:https://juejin.cn/post/7012161348293525534
来源:掘金
著作权归作者所有。商业转载请联系作者获得授权,非商业转载请注明出处。


点击查看更多内容
TA 点赞

若觉得本文不错,就分享一下吧!

评论

作者其他优质文章

正在加载中
  • 推荐
  • 评论
  • 收藏
  • 共同学习,写下你的评论
感谢您的支持,我会继续努力的~
扫码打赏,你说多少就多少
赞赏金额会直接到老师账户
支付方式
打开微信扫一扫,即可进行扫码打赏哦
今天注册有机会得

100积分直接送

付费专栏免费学

大额优惠券免费领

立即参与 放弃机会
意见反馈 帮助中心 APP下载
官方微信

举报

0/150
提交
取消
