Hyperf服务注册、发现之Nacos

Hyperf框架:服务注册之Nacos

前言

  • 在Hyperf里,目前仅支持ConsulNacos为服务中心的组件。在Hyperf服务注册之consul这篇文章中介绍了如何使用consul注册、发现服务。而使用Nacos与consul没有太大区别。

  • 同一个服务既可以是服务者也可以是消费者,为了简单清楚的演示,本文中使用docker 启动hyperf服务提供者服务、消费者服务、Nacos服务。

  • 依赖的组件:

    • hyperf/json-rpc
    • hyperf/rpc
    • hyperf/rpc-client
    • hyperf/rpc-server
    • hyperf/service-governance
    • hyperf/service-governance-nacos

服务提供者

启动服务提供者容器

docker run --name hyperf-provider -p 9501:9501 -v /work/hyperf:/opt/hyperf -itd hyperf/hyperf

安装的时候选择JSON-RPC
cd /opt
composer create-project hyperf/hyperf-skeleton hyperf

cd hyperf
composer require hyperf/service-governance
composer require hyperf/service-governance-nacos

定义服务提供者

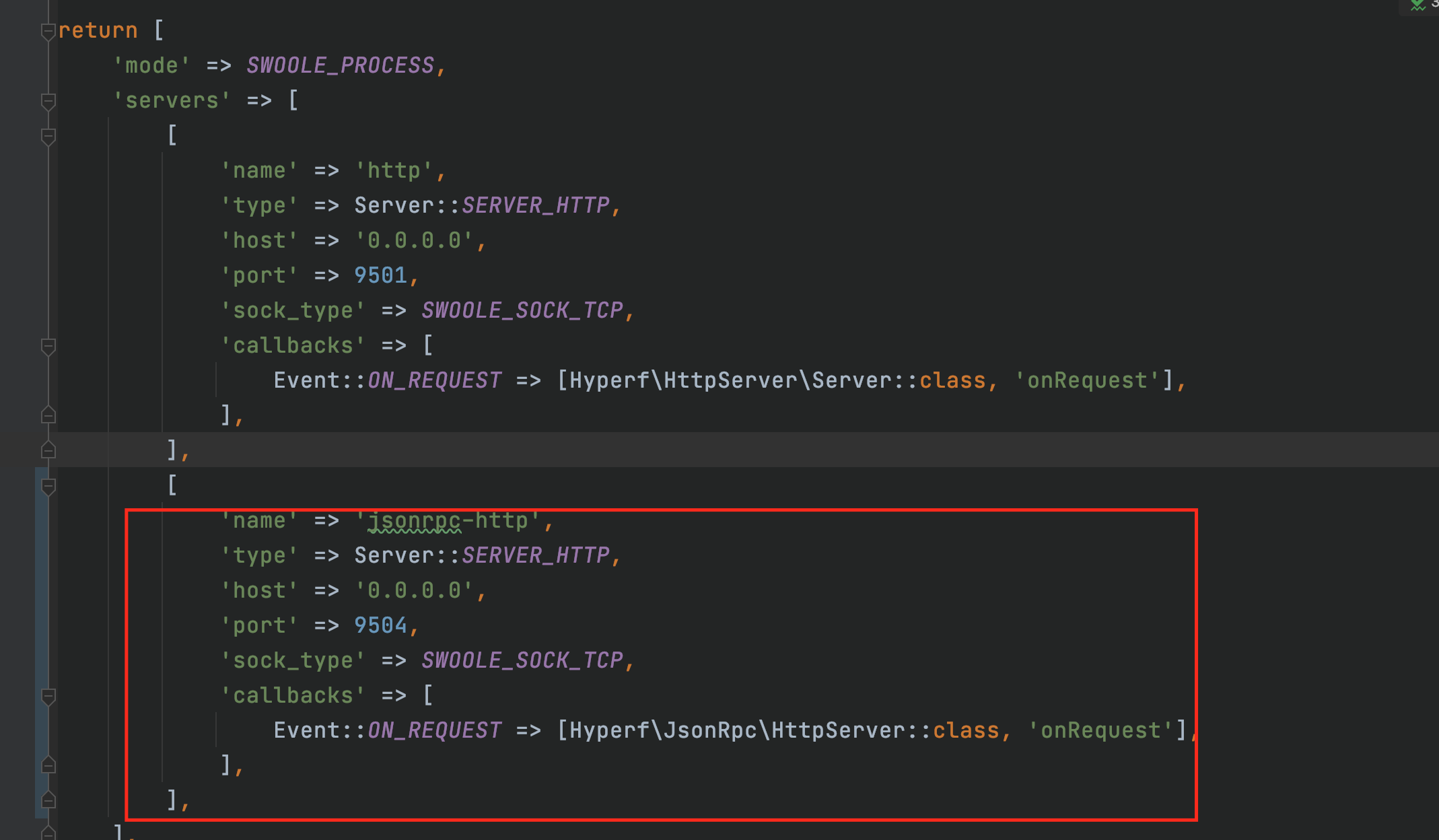

进入到config/autoload/server.php。添加下面配置

[
  'name' => 'jsonrpc-http',
  'type' => Server::SERVER_HTTP,
  'host' => '0.0.0.0',
  'port' => 9504,
  'sock_type' => SWOOLE_SOCK_TCP,
  'callbacks' => [
      Event::ON_REQUEST => [Hyperf\JsonRpc\HttpServer::class, 'onRequest'],
  ],
],

如下图所示:
图片描述

定义服务接口类

创建接口类:App\JsonRpc\TestServiceInterface

interface TestServiceInterface
{
    public function sum(int $a, int $b): int;

    public function diff(int $a, int $b): int;
}

定义接口实现类

创建实现类: App\JsonRpc\TestService

/**
 * @RpcService(name="CalculatorService", protocol="jsonrpc-http", server="jsonrpc-http", publishTo="nacos")
 * Class CalculatorService
 * @package App\JsonRpc
 */
class CalculatorService implements CalculatorServiceInterface
{

    public function sum(int $a, int $b): int
    {
        return $a + $b;
    }

    public function diff(int $a, int $b): int
    {
        return $a - $b;
    }
}

@RpcService 共有 4 个参数:

  • name 属性为定义该服务的名称,这里定义一个全局唯一的名字即可,Hyperf 会根据该属性生成对应的 ID 注册到服务中心去;

  • protocol 属性为定义该服务暴露的协议,目前仅支持 jsonrpc 和 jsonrpc-http,分别对应于 TCP 协议和 HTTP 协议下的两种协议,默认值为 jsonrpc-http,这里的值对应在 Hyperf\Rpc\ProtocolManager 里面注册的协议的 key,这两个本质上都是 JSON RPC 协议,区别在于数据格式化、数据打包、数据传输器等不同。

  • server 属性为绑定该服务类发布所要承载的 Server,默认值为 jsonrpc-http,该属性对应 config/autoload/server.php 文件内 servers 下所对应的 name,这里也就意味着我们需要定义一个对应的 Server;

  • publishTo 属性为定义该服务所要发布的服务中心,目前仅支持 consul、nacos 或为空,为空时代表不发布该服务到服务中心去,但也就意味着您需要手动处理服务发现的问题,要使用此功能需安装 hyperf/service-governance 组件及对应的驱动依赖;

配置服务驱动

此地址为服务中心的地址,在启动服务时,Hyperf 会自动地将 @RpcService 定义了 publishTo 属性为 consul 的服务注册到服务中心去。

config/autoload/services.php

// 服务驱动相关配置
'drivers' => [
    'nacos' => [
            // nacos server url like https://nacos.hyperf.io, Priority is higher than host:port
            // 'url' => '',
            // The nacos host info
            'host' => env("NACOS_HOST", '127.0.0.1'),
            'port' => env("NACOS_PORT", 8848),
            // The nacos account info
            'username' => env("NACOS_USERNAME", "nacos"),
            'password' => env("NACOS_PASSWORD", "nacos"),
            'guzzle' => [
                'config' => null,
            ],
            'group_name' => "DEFAULT_GROUP",
            'namespace_id' => env("NACOS_CONFIG_DATA_TENANT"),
            'heartbeat' => 5,
            'ephemeral' => false, // 是否注册临时实例
        ],
]

消费者

启动消费者服务

 # 此处和启动服务提供者一样,启动容器,安装依赖
  docker run --name hyperf-customer -p 9500:9500 -v /work/hyperf-customer:/opt/hyperf -itd hyperf/hyperf

  安装的时候选择JSON-RPC
  cd /opt
  composer create-project hyperf/hyperf-skeleton hyperf

  cd hyperf
  composer require hyperf/service-governance
  composer require hyperf/service-governance-nacos

定义服务消费者

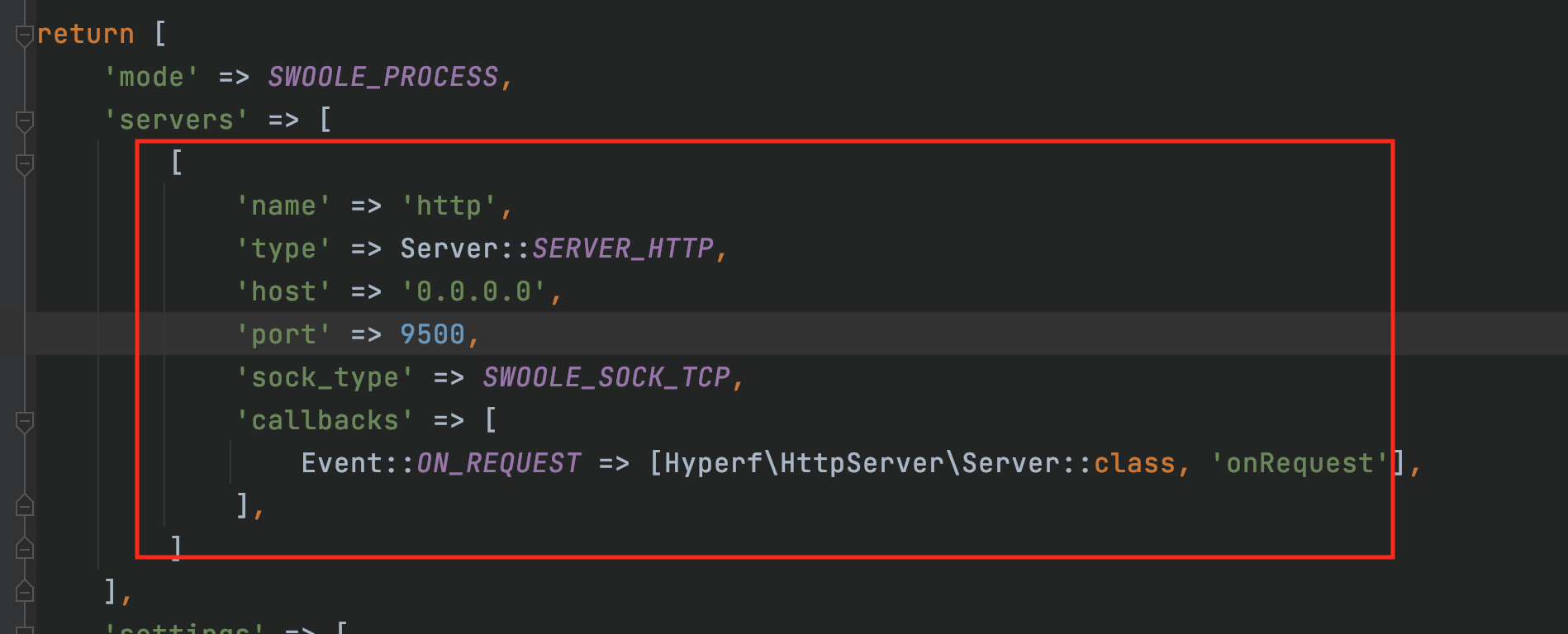

进入到config/autoload/server.php。添加下面配置

[
  'name' => 'http',
  'type' => Server::SERVER_HTTP,
  'host' => '0.0.0.0',
  'port' => 9500,
  'sock_type' => SWOOLE_SOCK_TCP,
  'callbacks' => [
      Event::ON_REQUEST => [Hyperf\HttpServer::class, 'onRequest'],
  ],
],

如下图所示:
图片描述

配置服务提供者地址

config/autoload/services.php

$registry = [
    'protocol' => 'nacos',
    'address' => 'http://'.env("NACOS_HOST").":".env("NACOS_PORT"),
];

return [
'enable' => [
        // 开启服务发现
        'discovery' => true,
        // 开启服务注册
        'register' => true,
    ],
    // 服务消费者相关配置
    'consumers'  => value(function () use($registry) {
        $consumers = [];
        $services = [
            'TestInterface' => TestInterface::class,
        ];
        foreach ($services as $name => $interface) {
            $consumers[] = [
                'protocol' => 'jsonrpc-http',
                'name' => $name,
                'load_balancer' => 'random',
                'service' => $interface,
                'registry' => $registry
            ];
        }
        return $consumers;
    }),
]

定义和服务端相同的接口类

app/JsonRpc/TestServiceInterface.php

namespace App\JsonRpc;

interface TestInterface
{
    public function sum(int $a, int $b): int;

    public function diff(int $a, int $b): int;
}

在控制器中调用

通过注解注入的方式
/**
* @Inject
* @var TestInterface
*/
private $test;

/**
* @RequestMapping(path="index", methods="get")
*/
public function index()
{
  $user = $this->request->input('user', 'Hyperf');
  $method = $this->request->getMethod();
  $diff = $this->test->diff(12, 3);
  return [
      'method' => $method,
      'message' => "Hello {$user}.",
      'diff' => $diff
  ];
}
通过容器调用
/**
* @RequestMapping(path="index", methods="get")
*/
public function index()
{
  $user = $this->request->input('user', 'Hyperf');
  $method = $this->request->getMethod();
  $container = ApplicationContext::getContainer()->get(TestServiceInterface:class);
  $diff = $container->diff(12, 3);
  return [
      'method' => $method,
      'message' => "Hello {$user}.",
      'diff' => $diff
  ];
}

安装、启动nacos服务

docker pull nacos/nacos-server

docker run --name nacos-server -p 8848:8848-itd nacos/nacos-server:latest

启动服务

启动服务提供者

cd opt/hyperf
php bin/hyperf.php start

服务会注册到nacos。

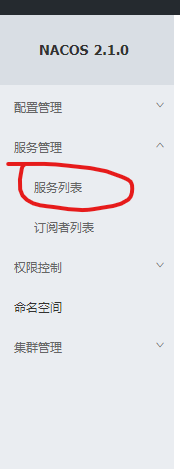

访问nacos,进入服务管理中,就会看到注册的服务了。
图片描述

返回结果:

{
  method: "GET",
  message: "Hello Hyperf.",
  diff: 9
}
