拥有三个类轻轻松松实现3D画廊（二）

——————————————————————————————————————————————————

——————————————————————————————————————————————————
接下是FancyCoverFlowItemWrapper类

package cn.wom.fancycoverflow;

/**

• 倒影特效
  /
  import android.;
  import android.R;
  import android.annotation.SuppressLint;
  import android.annotation.TargetApi;
  import android.content.Context;
  import android.graphics.*;
  import android.os.Build;
  import android.util.AttributeSet;
  import android.view.View;
  import android.view.ViewGroup;

/**

• This class has only internal use (package scope).
• <p/>
• It is responsible for applying additional effects to each coverflow item, that can only be applied at view level
• (e.g. color saturation).
• <p/>
• This is a ViewGroup by intention to enable child views in layouts to stay interactive (like buttons) though
• transformed.
• <p/>
• Since this class is only used within the FancyCoverFlowAdapter it doesn't need to check if there are multiple

• children or not (there can only be one at all times).
  */
  @SuppressWarnings("ConstantConditions")
  class FancyCoverFlowItemWrapper extends ViewGroup {

  // =============================================================================
  // Private members
  // =============================================================================

  private float saturation;

  private boolean isReflectionEnabled = false;

  private float imageReflectionRatio;

  private int reflectionGap;

  private float originalScaledownFactor;

  /**

  • This is a matrix to apply color filters (like saturation) to the wrapped view.
    */
    private ColorMatrix colorMatrix;

  /**

  • This paint is used to draw the wrapped view including any filters.
    */
    private Paint paint;

  /**

  • This is a cache holding the wrapped view's visual representation.
    */
    private Bitmap wrappedViewBitmap;

  /**

  • This canvas is used to let the wrapped view draw it's content.
    */
    private Canvas wrappedViewDrawingCanvas;

  // =============================================================================
  // Constructor
  // =============================================================================

  public FancyCoverFlowItemWrapper(Context context) {
  super(context);
  this.init();
  }

  public FancyCoverFlowItemWrapper(Context context, AttributeSet attrs) {
  super(context, attrs);
  this.init();
  }

  public FancyCoverFlowItemWrapper(Context context, AttributeSet attrs, int defStyle) {
  super(context, attrs, defStyle);
  this.init();
  }

  private void init() {
  this.paint = new Paint();
  this.colorMatrix = new ColorMatrix();
  // TODO: Define a default value for saturation inside an XML.
  this.setSaturation(1);
  }

  // =============================================================================
  // Getters / Setters
  // =============================================================================

  void setReflectionEnabled(boolean hasReflection) {
  if (hasReflection != this.isReflectionEnabled) {
  this.isReflectionEnabled = hasReflection;

      if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB) {
          // Turn off hardware acceleration if necessary (reflections won't support it).
          this.setLayerType(hasReflection ? View.LAYER_TYPE_SOFTWARE : View.LAYER_TYPE_HARDWARE, null);
      }

      this.remeasureChildren();
  }

  }

  void setReflectionRatio(float imageReflectionRatio) {
  if (imageReflectionRatio != this.imageReflectionRatio) {
  this.imageReflectionRatio = imageReflectionRatio;
  this.remeasureChildren();
  }
  }

  void setReflectionGap(int reflectionGap) {
  if (reflectionGap != this.reflectionGap) {
  this.reflectionGap = reflectionGap;
  this.remeasureChildren();
  }
  }

  public void setSaturation(float saturation) {
  if (saturation != this.saturation) {
  this.saturation = saturation;
  this.colorMatrix.setSaturation(saturation);
  this.paint.setColorFilter(new ColorMatrixColorFilter(this.colorMatrix));
  }
  }

  // =============================================================================
  // Supertype overrides
  // =============================================================================

  @Override
  protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
  super.onMeasure(widthMeasureSpec, heightMeasureSpec);
  this.remeasureChildren();

  // If we have reflection enabled, the original image is scaled down and a reflection is added beneath. Thus,
  // while maintaining the same height the width decreases and we need to adjust measured width.
  // WARNING: This is a hack because we do not obey the EXACTLY MeasureSpec mode that we will get mostly.
  if (this.isReflectionEnabled) {
      this.setMeasuredDimension((int) (this.getMeasuredWidth() * this.originalScaledownFactor), this.getMeasuredHeight());
  }

  }

  @SuppressLint("DrawAllocation")
  @Override
  protected void onLayout(boolean changed, int l, int t, int r, int b) {
  if (changed) {
  int measuredWidth = this.getMeasuredWidth();
  int measuredHeight = this.getMeasuredHeight();

      if (this.wrappedViewBitmap == null  this.wrappedViewBitmap.getWidth() != measuredWidth  this.wrappedViewBitmap.getHeight() != measuredHeight) {
          this.wrappedViewBitmap = Bitmap.createBitmap(measuredWidth, measuredHeight, Bitmap.Config.ARGB_8888);
          this.wrappedViewDrawingCanvas = new Canvas(this.wrappedViewBitmap);
      }

      View child = getChildAt(0);
      int childWidth = child.getMeasuredWidth();
      int childHeight = child.getMeasuredHeight();
      int childLeft = (measuredWidth - childWidth) / 2;
      int childRight = measuredWidth - childLeft;
      child.layout(childLeft, 0, childRight, childHeight);
  }

  }

  @TargetApi(Build.VERSION_CODES.HONEYCOMB)
  @Override
  protected void dispatchDraw(Canvas canvas) {
  View childView = getChildAt(0);

  if (childView != null) {
      // If on honeycomb or newer, cache the view.
      if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB) {
          if (childView.isDirty()) {
              childView.draw(this.wrappedViewDrawingCanvas);

              if (this.isReflectionEnabled) {
                  this.createReflectedImages();
              }
          }
      } else {
          childView.draw(this.wrappedViewDrawingCanvas);
      }
  }

  canvas.drawBitmap(this.wrappedViewBitmap, (this.getWidth() - childView.getWidth()) / 2, 0, paint);

  }

  // =============================================================================
  // Methods
  // =============================================================================

  private void remeasureChildren() {
  View child = this.getChildAt(0);

  if (child != null) {
      // When reflection is enabled calculate proportional scale down factor.
      final int originalChildHeight = this.getMeasuredHeight();
      this.originalScaledownFactor = this.isReflectionEnabled ? (originalChildHeight * (1 - this.imageReflectionRatio) - reflectionGap) / originalChildHeight : 1.0f;
      final int childHeight = (int) (this.originalScaledownFactor * originalChildHeight);
      final int childWidth = (int) (this.originalScaledownFactor * getMeasuredWidth());

      int heightSpec = MeasureSpec.makeMeasureSpec(childHeight, MeasureSpec.AT_MOST);
      int widthSpec = MeasureSpec.makeMeasureSpec(childWidth, MeasureSpec.AT_MOST);
      this.getChildAt(0).measure(widthSpec, heightSpec);
  }

  }

  /**

  • 用于创建Item的倒影

  • */
    private void createReflectedImages() {
    //获取Item的宽度
    final int width = this.wrappedViewBitmap.getWidth();
    //获取Item的高度
    final int height = this.wrappedViewBitmap.getHeight();

    final Matrix matrix = new Matrix();
    matrix.postScale(1, -1);

    //倒影未显示部分的高度
    final int scaledDownHeight = (int) (height * originalScaledownFactor);
    //倒影显示部分的高度
    final int invertedHeight = height - scaledDownHeight - reflectionGap;
    //必须是大于0的数，否则会抛出异常
    final int invertedBitmapSourceTop = scaledDownHeight - invertedHeight;
    //创建翻转的Bitmap对象
    final Bitmap invertedBitmap = Bitmap.createBitmap(this.wrappedViewBitmap, 0, invertedBitmapSourceTop, width, invertedHeight, matrix, true);

    this.wrappedViewDrawingCanvas.drawBitmap(invertedBitmap, 0, scaledDownHeight + reflectionGap, null);

    final Paint paint = new Paint();
    //处理用于线性渐变的对象
    final LinearGradient shader = new LinearGradient(0, height imageReflectionRatio + reflectionGap, 0, height, 0x70ffffff, 0x00ffffff, Shader.TileMode.CLAMP);
    //设置渐变
    paint.setShader(shader);
    //设置模式
    paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.DST_IN));
    //绘制矩形，让渐变在矩形中发生
    this.wrappedViewDrawingCanvas.drawRect(0, height (1 - imageReflectionRatio), width, height, paint);
    }
    }
    ——————————————————————————————————————————————————
    ——————————————————————————————————————————————————

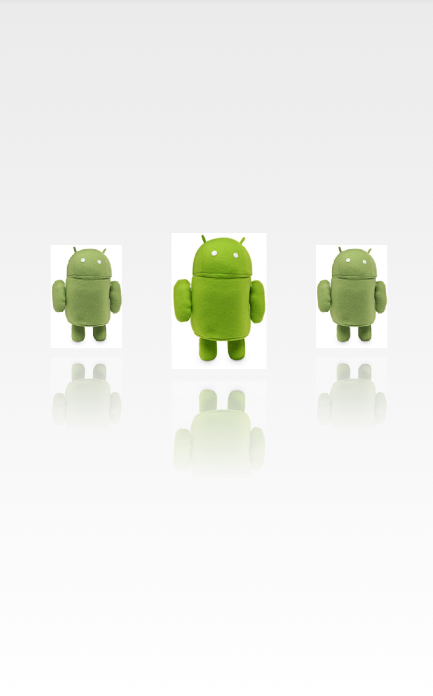

    最终实现的效果图为

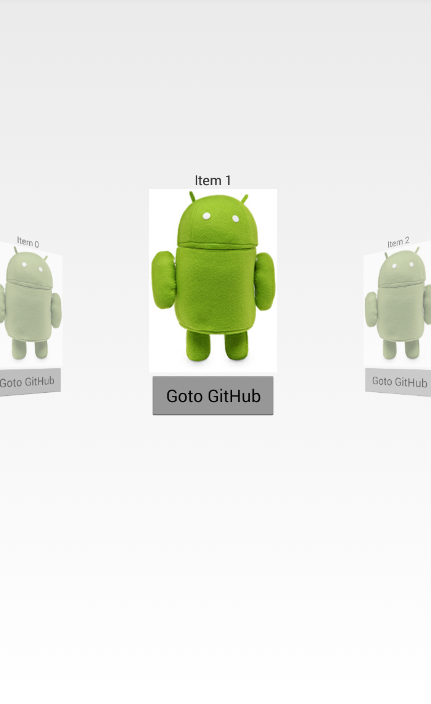

如果想实现下面的效果图

就要在那个图片的资源的那个类里面做文章。

package cn.wom.fancycoverflow.example;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.net.Uri;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;
import cn.wom.fancycoverflow.FancyCoverFlow;
import cn.wom.fancycoverflow.FancyCoverFlowAdapter;
import cn.wom.fancycoverflow.R;

public class ViewGroupExample extends Activity {

// =============================================================================
// Supertype overrides
// =============================================================================

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    this.setContentView(R.layout.layout_inflate_example);

    FancyCoverFlow fancyCoverFlow = (FancyCoverFlow) findViewById(R.id.fancyCoverFlow);
    fancyCoverFlow.setAdapter(new ViewGroupExampleAdapter());
}

// =============================================================================
// Private classes
// =============================================================================

private static class ViewGroupExampleAdapter extends FancyCoverFlowAdapter {

    // =============================================================================
    // Private members
    // =============================================================================

    private int[] images = {R.drawable.image1, R.drawable.image2, R.drawable.image3, R.drawable.image4, R.drawable.image5, R.drawable.image6,};

    // =============================================================================
    // Supertype overrides
    // =============================================================================

    @Override
    public int getCount() {
        return images.length;
    }

    @Override
    public Integer getItem(int i) {
        return images[i];
    }

    @Override
    public long getItemId(int i) {
        return i;
    }

    @Override
    public View getCoverFlowItem(int i, View reuseableView, ViewGroup viewGroup) {
        CustomViewGroup customViewGroup = null;

        if (reuseableView != null) {
            customViewGroup = (CustomViewGroup) reuseableView;
        } else {
            customViewGroup = new CustomViewGroup(viewGroup.getContext());
            customViewGroup.setLayoutParams(new FancyCoverFlow.LayoutParams(300, 600));
        }

        customViewGroup.getImageView().setImageResource(this.getItem(i));
        customViewGroup.getTextView().setText(String.format("Item %d", i));

        return customViewGroup;
    }
}

private static class CustomViewGroup extends LinearLayout {

    // =============================================================================
    // Child views
    // =============================================================================

    private TextView textView;

    private ImageView imageView;

    private Button button;

    // =============================================================================
    // Constructor
    // =============================================================================

    private CustomViewGroup(Context context) {
        super(context);

        this.setOrientation(VERTICAL);

        this.textView = new TextView(context);
        this.imageView = new ImageView(context);
        this.button = new Button(context);

        LinearLayout.LayoutParams layoutParams = new LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT);
        this.textView.setLayoutParams(layoutParams);
        this.imageView.setLayoutParams(layoutParams);
        this.button.setLayoutParams(layoutParams);

        this.textView.setGravity(Gravity.CENTER);

        this.imageView.setScaleType(ImageView.ScaleType.CENTER_INSIDE);
        this.imageView.setAdjustViewBounds(true);

        this.button.setText("Goto GitHub");
        this.button.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent i = new Intent(Intent.ACTION_VIEW, Uri.parse("https://davidschreiber.github.com/FancyCoverFlow"));
                view.getContext().startActivity(i);
            }
        });

        this.addView(this.textView);
        this.addView(this.imageView);
        this.addView(this.button);
    }

    // =============================================================================
    // Getters
    // =============================================================================

    private TextView getTextView() {
        return textView;
    }

    private ImageView getImageView() {
        return imageView;
    }
}

}
