HashMap原理和底层实现

标签:
Java

最近研究了一下java中比较常见的map类型,主要有HashMap,HashTable,LinkedHashMap和concurrentHashMap。这几种map有各自的特性和适用场景。使用方法的话,就不说了,本文重点介绍其原理和底层的实现。文章中的代码来源于jdk1.9版本。

HashMap特点及原理分析
特点

HashMap是java中使用最为频繁的map类型,其读写效率较高,但是因为其是非同步的,即读写等操作都是没有锁保护的,所以在多线程场景下是不安全的,容易出现数据不一致的问题。在单线程场景下非常推荐使用。

原理

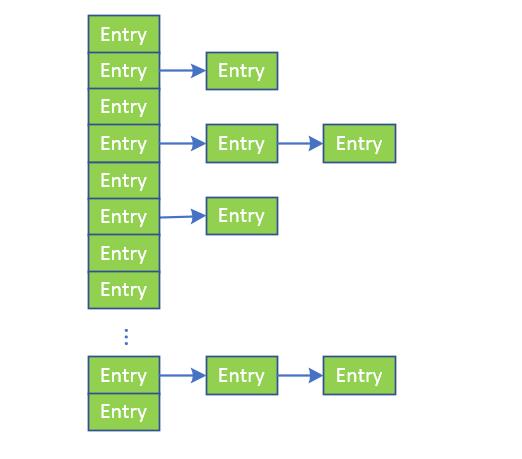

HashMap的整体结构,如下图所示:
图片描述

根据图片可以很直观的看到,HashMap的实现并不难,是由数组和链表两种数据结构组合而成的,其节点类型均为名为Entry的class(后边会对Entry做讲解)。采用这种数据结果,即是综合了两种数据结果的优点,既能便于读取数据,也能方便的进行数据的增删。

每一个哈希表,在进行初始化的时候,都会设置一个容量值(capacity)和加载因子(loadFactor)。容量值指的并不是表的真实长度,而是用户预估的一个值,真实的表长度,是不小于capacity的2的整数次幂。加载因子是为了计算哈希表的扩容门限,如果哈希表保存的节点数量达到了扩容门限,哈希表就会进行扩容的操作,扩容的数量为原表数量的2倍。默认情况下,capacity的值为16,loadFactor的值为0.75(综合考虑效率与空间后的折衷)。

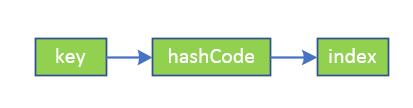

  • 数据写入。以HashMap(String, String)为例,即对于每一个节点,其key值类型为String,value值类型也为String。在向哈希表中插入数据的时候,首先会计算出key值的hashCode,即key.hashCode()。关于hashCode方法的实现,有兴趣的朋友可以看一下jdk的源码(之前看到信息说有一次面试中问到了这个知识点)。该方法会返回一个32位的int类型的值,以int h = key.hashCode()为例。获取到h的值之后,会计算该key对应的哈希表中的数组的位置,计算方法就是取模运算,h%table.length。因为table的长度为2的整数次幂,所以可以用h与table.length-1直接进行位与运算,即是,index = h & (table.length-1)。得到的index就是放置新数据的位置。
    图片描述
    如果插入多条数据,则有可能最后计算出来的index是相同的,比如1和17,计算的index均为1。这时候出现了hash冲突。HashMap解决哈希冲突的方式,就是使用链表。每个链表,保存的是index相同的数据。

  • 数据读取。从哈希表中读取数据时候,先定位到对应的index,然后遍历对应位置的链表,找到key值和hashCode相同的节点,获取对应的value值。
  • 数据删除。 在hashMap中,数据删除的成本很低,直接定位到对应的index,然后遍历该链表,删除对应的节点。哈希表中数据的分布越均匀,则删除数据的效率越高(考虑到极端场景,数据均保存到了数组中,不存在链表,则复杂度为O(1))。
JDK源码分析

构造方法

    /**
     * Constructs an empty {@code HashMap} with the specified initial
     * capacity and load factor.
     *
     * @param  initialCapacity the initial capacity
     * @param  loadFactor      the load factor
     * @throws IllegalArgumentException if the initial capacity is negative
     *         or the load factor is nonpositive
     */
    public HashMap(int initialCapacity, float loadFactor) {
        if (initialCapacity < 0)
            throw new IllegalArgumentException("Illegal initial capacity: " +
                                               initialCapacity);
        if (initialCapacity > MAXIMUM_CAPACITY)
            initialCapacity = MAXIMUM_CAPACITY;
        if (loadFactor <= 0 || Float.isNaN(loadFactor))
            throw new IllegalArgumentException("Illegal load factor: " +
                                               loadFactor);
        this.loadFactor = loadFactor;
        this.threshold = tableSizeFor(initialCapacity);
    }

从构造方法中可以看到

  • 参数中的initialCapacity并不是哈希表的真实大小。真实的表大小,是不小于initialCapacity的2的整数次幂。
  • 哈希表的大小是存在上限的,就是2的30次幂。当哈希表的大小到达该数值时候,之后就不再进行扩容,只是向链表中插入数据了。

    PUT 方法

     /**
     * Associates the specified value with the specified key in this map.
     * If the map previously contained a mapping for the key, the old
     * value is replaced.
     *
     * @param key key with which the specified value is to be associated
     * @param value value to be associated with the specified key
     * @return the previous value associated with {@code key}, or
     *         {@code null} if there was no mapping for {@code key}.
     *         (A {@code null} return can also indicate that the map
     *         previously associated {@code null} with {@code key}.)
     */
    public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

     /**
     * Implements Map.put and related methods
     *
     * @param hash hash for key
     * @param key the key
     * @param value the value to put
     * @param onlyIfAbsent if true, don't change existing value
     * @param evict if false, the table is in creation mode.
     * @return previous value, or null if none
     */
    final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
                   boolean evict) {
        Node<K,V>[] tab; Node<K,V> p; int n, i;
        if ((tab = table) == null || (n = tab.length) == 0)
            n = (tab = resize()).length;
        if ((p = tab[i = (n - 1) & hash]) == null)
            tab[i] = newNode(hash, key, value, null);
        else {
            Node<K,V> e; K k;
            if (p.hash == hash &&
                ((k = p.key) == key || (key != null && key.equals(k))))
                e = p;
            else if (p instanceof TreeNode)
                e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
            else {
                for (int binCount = 0; ; ++binCount) {
                    if ((e = p.next) == null) {
                        p.next = newNode(hash, key, value, null);
                        if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
                            treeifyBin(tab, hash);
                        break;
                    }
                    if (e.hash == hash &&
                        ((k = e.key) == key || (key != null && key.equals(k))))
                        break;
                    p = e;
                }
            }
            if (e != null) { // existing mapping for key
                V oldValue = e.value;
                if (!onlyIfAbsent || oldValue == null)
                    e.value = value;
                afterNodeAccess(e);
                return oldValue;
            }
        }
        ++modCount;
        if (++size > threshold)
            resize();
        afterNodeInsertion(evict);
        return null;
    }

可以看到:

  • 给哈希表分配空间的动作,是向表中添加第一个元素触发的,并不是在哈希表初始化的时候进行的。
  • 如果对应index的数组值为null,即插入该index位置的第一个元素,则直接设置tab[i]的值即可。
  • 查看数组中index位置的node是否具有相同的key和hash如果有,则修改对应值即可。
  • 遍历数组中index位置的链表,如果找到了具有相同key和hash的node,跳出循环,进行value更新操作。否则遍历到链表的结尾,并在链表最后添加一个节点,将对应数据添加进去。
  • 方法中涉及到了TreeNode,可以暂时先不关注。

    GET 方法

    /**
     * Returns the value to which the specified key is mapped,
     * or {@code null} if this map contains no mapping for the key.
     *
     * <p>More formally, if this map contains a mapping from a key
     * {@code k} to a value {@code v} such that {@code (key==null ? k==null :
     * key.equals(k))}, then this method returns {@code v}; otherwise
     * it returns {@code null}.  (There can be at most one such mapping.)
     *
     * <p>A return value of {@code null} does not <i>necessarily</i>
     * indicate that the map contains no mapping for the key; it's also
     * possible that the map explicitly maps the key to {@code null}.
     * The {@link #containsKey containsKey} operation may be used to
     * distinguish these two cases.
     *
     * @see #put(Object, Object)
     */
    public V get(Object key) {
        Node<K,V> e;
        return (e = getNode(hash(key), key)) == null ? null : e.value;
    }

    /**
     * Implements Map.get and related methods
     *
     * @param hash hash for key
     * @param key the key
     * @return the node, or null if none
     */
    final Node<K,V> getNode(int hash, Object key) {
        Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
        if ((tab = table) != null && (n = tab.length) > 0 &&
            (first = tab[(n - 1) & hash]) != null) {
            if (first.hash == hash && // always check first node
                ((k = first.key) == key || (key != null && key.equals(k))))
                return first;
            if ((e = first.next) != null) {
                if (first instanceof TreeNode)
                    return ((TreeNode<K,V>)first).getTreeNode(hash, key);
                do {
                    if (e.hash == hash &&
                        ((k = e.key) == key || (key != null && key.equals(k))))
                        return e;
                } while ((e = e.next) != null);
            }
        }
        return null;
    }

代码分析:

  • 先定位到数组中index位置,检查第一个节点是否满足要求
  • 遍历对应该位置的链表,找到满足要求节点进行return

扩容操作

    /**
     * Initializes or doubles table size.  If null, allocates in
     * accord with initial capacity target held in field threshold.
     * Otherwise, because we are using power-of-two expansion, the
     * elements from each bin must either stay at same index, or move
     * with a power of two offset in the new table.
     *
     * @return the table
     */
    final Node<K,V>[] resize() {
        Node<K,V>[] oldTab = table;
        int oldCap = (oldTab == null) ? 0 : oldTab.length;
        int oldThr = threshold;
        int newCap, newThr = 0;
        if (oldCap > 0) {
            if (oldCap >= MAXIMUM_CAPACITY) {
                threshold = Integer.MAX_VALUE;
                return oldTab;
            }
            else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
                     oldCap >= DEFAULT_INITIAL_CAPACITY)
                newThr = oldThr << 1; // double threshold
        }
        else if (oldThr > 0) // initial capacity was placed in threshold
            newCap = oldThr;
        else {               // zero initial threshold signifies using defaults
            newCap = DEFAULT_INITIAL_CAPACITY;
            newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);
        }
        if (newThr == 0) {
            float ft = (float)newCap * loadFactor;
            newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
                      (int)ft : Integer.MAX_VALUE);
        }
        threshold = newThr;
        @SuppressWarnings({"rawtypes","unchecked"})
            Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
        table = newTab;
        if (oldTab != null) {
            for (int j = 0; j < oldCap; ++j) {
                Node<K,V> e;
                if ((e = oldTab[j]) != null) {
                    oldTab[j] = null;
                    if (e.next == null)
                        newTab[e.hash & (newCap - 1)] = e;
                    else if (e instanceof TreeNode)
                        ((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
                    else { // preserve order
                        Node<K,V> loHead = null, loTail = null;
                        Node<K,V> hiHead = null, hiTail = null;
                        Node<K,V> next;
                        do {
                            next = e.next;
                            if ((e.hash & oldCap) == 0) {
                                if (loTail == null)
                                    loHead = e;
                                else
                                    loTail.next = e;
                                loTail = e;
                            }
                            else {
                                if (hiTail == null)
                                    hiHead = e;
                                else
                                    hiTail.next = e;
                                hiTail = e;
                            }
                        } while ((e = next) != null);
                        if (loTail != null) {
                            loTail.next = null;
                            newTab[j] = loHead;
                        }
                        if (hiTail != null) {
                            hiTail.next = null;
                            newTab[j + oldCap] = hiHead;
                        }
                    }
                }
            }
        }
        return newTab;
    }

代码分析:

  • 如果就容量大于0,容量到达最大值,则不扩容。容量未到达最大值,则新容量和新门限翻倍。
  • 如果旧门限和旧容量均为0,则相当于初始化,设置对应的容量和门限,分配空间。
  • 旧数据的整理部分,非常非常的巧妙,先膜拜一下众位大神。在外层遍历node数组,对于每一个table[j],判断该node扩容之后,是属于低位部分(原数组),还是高位部分(扩容部分数组)。判断的方式就是位与旧数组的长度,如果为0则代表的是地位数组,因为index的值小于旧数组长度,位与的结果就是0;相反,如果不为零,则为高位部分数组。低位数组,添加到以loHead为头的链表中,高位数组添加到以hiHead为头的数组中。链表遍历结束,分别设置新哈希表的index位置和(index+旧表长度)位置的值。非常的巧妙。
    注意点
  • HashMap的操作中未进行锁保护,所以多线程场景下存取数据,很存在数据不一致的问题,不推荐使用
  • HashMap中key和value可以为null
  • 计算index的运算,h & (length - 1),感觉很巧妙,学习了
  • 哈希表的扩容中的数据整理逻辑,写的非常非常巧妙,大开眼界
