spark-rpc部分源码走读

标签:
Spark

RPC体系结构

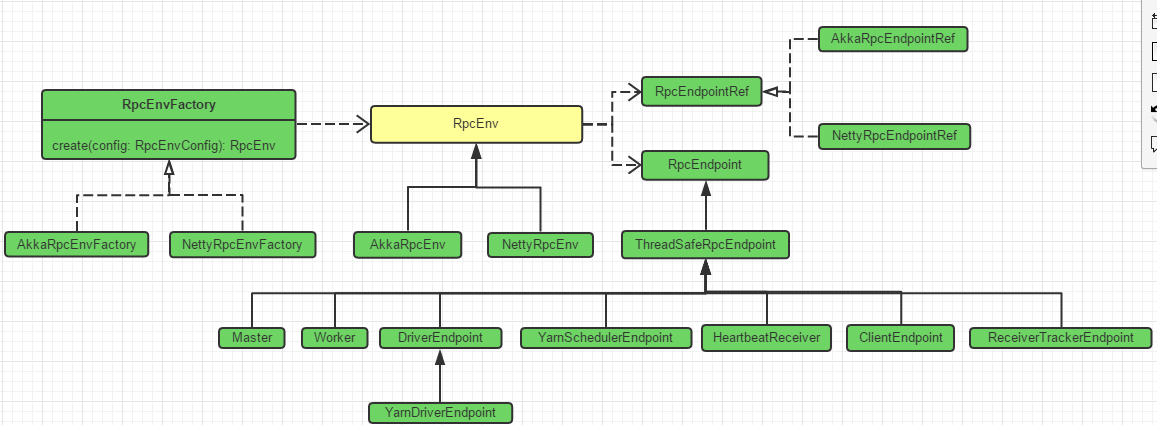

spark1.6中的RPC体系结构大致如下:




RpcEnv相当于容器,有host、port已及注册其中的RpcEndpoint,RpcEndpoint有对应的RpcEndpointRef。RpcEndpointRef对RpcEndpoint发送相应消息,RpcEndpoint对针对具体消息做出相应操作。

大致流程

  1. 客户端和服务端都需要创建RpcEnv对象

  2. 服务端通过RpcEnv.setupEndpoint()将服务注册到RpcEnv中

  3. 客户端通过主机、端口、名称找到对应的RpcEndpointRef,通过调用ask\send方法对其发送请求

  4. RpcEndpoint通过receive\receiveReplay对调用请求做出响应

RpcEnv创建

Master、Worker、Driver中均需要创建RpcEnv
Master和Worker在启动时创建,Driver在SparkContext创建SparkEnv时创建RpcEnv

这三个角色,同时为服务端和客户端

//Master.scala\Worker.scala

 val rpcEnv = RpcEnv.create(SYSTEM_NAME, host, port, conf, securityMgr)

Driver中创建,代码如下:

//SparkEnv.scala
 private def create(....):SparkEnv={
 .....
    val rpcEnv = RpcEnv.create(systemName, hostname, port, conf, securityManager,
      clientMode = !isDriver)
      }
  ....

RpcEnv.create里面会通过RpcEnvFactory的create方法来创建具体的RpcEnv实现,下面是V1.6的代码,通过反射来支撑Akka和Netty这两套RPC实现,V2.0里面面已经没有AkkaRpcEnvFactory以及AkkaRpcEnv、AkkaEndpointRef等使用AAkka的rpc实现了,只有NettyRpcEnvFactory直接new了.

  private def getRpcEnvFactory(conf: SparkConf): RpcEnvFactory = {
    val rpcEnvNames = Map(      "akka" -> "org.apache.spark.rpc.akka.AkkaRpcEnvFactory",      "netty" -> "org.apache.spark.rpc.netty.NettyRpcEnvFactory")
    val rpcEnvName = conf.get("spark.rpc", "netty")
    val rpcEnvFactoryClassName = rpcEnvNames.getOrElse(rpcEnvName.toLowerCase, rpcEnvName)
    Utils.classForName(rpcEnvFactoryClassName).newInstance().asInstanceOf[RpcEnvFactory]
  }

最终由RpcEnvFactory(具体实现为:NettyRpcEnvFactory)的create方法创建具体的RpcEnv实现,并在指定端口启动服务。
以下为NettyRpcEnvFactory

  def create(config: RpcEnvConfig): RpcEnv = {
    val sparkConf = config.conf    // Use JavaSerializerInstance in multiple threads is safe. However, if we plan to support
    // KryoSerializer in future, we have to use ThreadLocal to store SerializerInstance
    val javaSerializerInstance =      new JavaSerializer(sparkConf).newInstance().asInstanceOf[JavaSerializerInstance]
    val nettyEnv =      new NettyRpcEnv(sparkConf, javaSerializerInstance, config.host, config.securityManager)    if (!config.clientMode) {
      val startNettyRpcEnv: Int => (NettyRpcEnv, Int) = { actualPort =>
        nettyEnv.startServer(actualPort)
        (nettyEnv, nettyEnv.address.port)
      }      try {
        Utils.startServiceOnPort(config.port, startNettyRpcEnv, sparkConf, config.name)._1
      } catch {        case NonFatal(e) =>
          nettyEnv.shutdown()          throw e
      }
    }
    nettyEnv
  }
}

RpcEndpoint注册

RpcEvn创建成功,服务端已经在指定的端口启动,但还需要注册具体的服务(RpcEndpoint)于其中才能正常响应调用方的调用请求

调用RpcEvn.setupEndpoint来注册RpcEndpoint

  /**
   * Register a [[RpcEndpoint]] with a name and return its [[RpcEndpointRef]]. [[RpcEnv]] does not
   * guarantee thread-safety.
   */  def setupEndpoint(name: String, endpoint: RpcEndpoint): RpcEndpointRef

以Master为例,代码如下:

   val masterEndpoint = rpcEnv.setupEndpoint(ENDPOINT_NAME,      new Master(rpcEnv, rpcEnv.address, webUiPort, securityMgr, conf))

每个RpcEnv中的RpcEndpoint,在开始处理处理消息之前会调用onStart方法,所以一些初始化的方法都大onStart中进行,比如Master和Worker的启动就在时执行,
receive中定义对各种消息处理的操作,消息类型全是case class,比如在Master中就有对Heartbeat、DriverStateChanged、ExecutorStateChanged等等消息的处理、可以看Master.scala和Worker.scala

RpcEndpoint的定义

//RpcEndpoint.scalaprivate[spark] trait RpcEndpoint {  /**
   * Invoked before [[RpcEndpoint]] starts to handle any message.
   */
  def onStart(): Unit = {
  }  /**
   * Process messages from [[RpcEndpointRef.send]] or [[RpcCallContext.reply)]]. If receiving a
   * unmatched message, [[SparkException]] will be thrown and sent to `onError`.
   */
  def receive: PartialFunction[Any, Unit] = {   //通常都在这里面定义了对各种各样消息的对应操作,消息都是定义在case class中
  }  /**
   * Process messages from [[RpcEndpointRef.ask]]. If receiving a unmatched message,
   * [[SparkException]] will be thrown and sent to `onError`.
   */
  def receiveAndReply(context: RpcCallContext): PartialFunction[Any, Unit] = {    //通常都在这里面定义了对各种各样消息的对应操作以及回复,消息都是定义在case class中
  }  /**
   * Retrieve the [[RpcEndpointRef]] represented by `systemName`, `address` and `endpointName`.
   * This is a blocking action.
   */
  def setupEndpointRef(
      systemName: String, address: RpcAddress, endpointName: String): RpcEndpointRef = {
    setupEndpointRefByURI(uriOf(systemName, address, endpointName))    //服务调用着调用这个方法获取RpcEndpointRef,给RpcEndpoint发送调用请求
  }
    ......
}



作者:migle
链接:https://www.jianshu.com/p/c2b854698608
