ELK实践(二):收集Nginx日志

标签:
大数据

Nginx访问日志

这里补充下Nginx访问日志使用的说明。一般在nginx.conf主配置文件里需要定义一种格式:

log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    '$status $body_bytes_sent "$http_referer" '
    '"$http_user_agent" "$http_x_forwarded_for" $request_time';

上面的格式我是基于默认的加了一个$request_time

然后子配置使用:

access_log  logs/myapp.log  main;

即可。

Filebeat采集日志数据到ElasticSearch

配置:

su -e elk
cd /usr/local/elk
vim beats/filebeat/filebeat.test_nginx.yml

配置详情:

filebeat.prospectors:- type: log  input_type: log  paths:    - /work/yphp/nginx/logs/*.log  tags: ["ngx", "yujc"]  fields:    logIndex: nginx    docType: nginx-access  fields_under_root: true  tail_files: falseoutput.elasticsearch:  hosts: ["127.0.0.1:9200"]  index: "test-nginx-%{+yyyy.MM.dd}"

配置说明:

filebeat.prospectors:

  • type 日志类型,默认log

  • input_type 输入类型,默认log

  • paths 采集的日志,可以使用通配符。支持多个

  • tags 自定义标签,是个数组。自定义

  • fields 自定义字段

  • fields_under_root 自定义字段是否追加到根。如果为false,fields配置的字段键名是fields

  • tail_files 是否从末尾开始采集

  • document_type 自定义字段,用于Logsatsh区分来源,在Logsatsh里用变量type表示

output.elasticsearch:

  • hosts 配置ES节点,数组格式,支持多个。

  • index 配置ES索引。不配置使用默认的 filebeat-*

  • protocol 配置协议,例如http,https

  • username 配置ES用户名,例如elastic

  • password 配置ES密码,例如changeme

设置权限600,并启动filebeat:

chmod -R 600 beats/filebeat/filebeat.test_nginx.yml

./beats/filebeat/filebeat -c beats/filebeat/filebeat.test_nginx.yml

然后访问Nginx应用,查看ES是否新增了一个索引:

$ curl http://127.0.0.1:9200/_cat/indices?v | grep test-nginx  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
105  1161  105  1161    0     0   123k      0 --:--:-- --:--:-- --:--:--  125k
yellow open   test-nginx-2018.09.24             ArxrVVOkTjG8ZlXJjb9bVg   5   1          1            0     11.6kb         11.6kb

我们查看一条数据:

$ curl http://127.0.0.1:9200/test-nginx-2018.09.24/_search?q=*&size=1{  "_index": "test-nginx-2018.09.24",  "_type": "doc",  "_id": "AWYKkBqtJzfnbYlB_DRX",  "_version": 1,  "_score": null,  "_source": {    "@timestamp": "2018-09-24T07:51:43.140Z",    "beat": {      "hostname": "2106567e5bce",      "name": "2106567e5bce",      "version": "5.6.2"
    },    "docType": "nginx-access",    "input_type": "log",    "logIndex": "nginx",    "message": "172.16.10.1 - - [24/Sep/2018:07:51:40 +0000] \"GET /?time=22 HTTP/1.1\" 200 97991 \"-\" \"Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36\" \"-\" 0.009",    "offset": 5243,    "source": "/work/yphp/nginx/logs/hello71.log",    "tags": [      "ngx",      "yujc"
    ],    "type": "log"
  },  "fields": {    "@timestamp": [      1537775503140
    ]
  },  "sort": [    1537775503140
  ]
}

可以看到已经有数据了。但是日志内容作为一个整体(字段是message)了。

Filebeat采集日志数据,Logstash过滤发到ElasticSearch

配置:

su -e elk
cd /usr/local/elk
vim beats/filebeat/filebeat.test_nginx2.yml

配置详情:

filebeat.prospectors:- type: log  input_type: log  paths:    - /work/yphp/nginx/logs/*.log  tags: ["ngx", "yujc"]  fields:    logIndex: nginx    docType: nginx-access  fields_under_root: true  tail_files: falseoutput.logstash:  hosts: ["127.0.0.1:5044"]

配置logstash

su -e elk
cd /usr/local/elk
vim logstash/config/conf.d/filebeat.conf

配置详情:

input {
    beats {
        port => 5044
    }
}filter {
    grok {
        match => { "message" => "%{IPORHOST:remote_ip} - %{DATA:user_name} \[%{HTTPDATE:time}\] \"%{WORD:method} %{DATA:url} HTTP/%{NUMBER:http_version}\" %{NUMBER:response_code} %{NUMBER:body_sent:bytes} \"%{DATA:referrer}\" \"%{DATA:agent}\" \"%{DATA:x_forwarded_for}\" %{NUMBER:request_time}" }
        remove_field => "message"
    }
}

output {
    elasticsearch {
        hosts => ["127.0.0.1:9200"]
        index => "test-nginx2-%{type}-%{+YYYY.MM.dd}"
        document_type => "%{type}"
    }
    stdout { codec => rubydebug }
}

我使用的nginx日志格式是在标准格式后面加了2个字段$http_x_forwarded_for$request_time

log_format  main  '$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ''"$http_user_agent" "$http_x_forwarded_for" $request_time';

日志示例:

172.16.10.1 - - [24/Sep/2018:09:04:40 +0000] "GET /?time=2244 HTTP/1.1" 200 98086 "-" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36" "-" 0.002

上面的grok表达式是:

%{IPORHOST:remote_ip} - %{DATA:user_name} \[%{HTTPDATE:time}\] \"%{WORD:method} %{DATA:url} HTTP/%{NUMBER:http_version}\" %{NUMBER:response_code} %{NUMBER:body_sent:bytes} \"%{DATA:referrer}\" \"%{DATA:agent}\" \"%{DATA:x_forwarded_for}\" %{NUMBER:request_time}

我们先使用Grok Debugger 工具在线调试下,看看写的grok是否正确。我之前没有测试之前启动,发现ES里没有grok里解析出来的字段,后来在命令行看到filebeat的输出(前台运行):

$ ./beats/filebeat/filebeat -c beats/filebeat/filebeat.test_nginx2.yml

{    "@timestamp" => 2018-09-24T09:01:19.555Z,      "logIndex" => "nginx",        "offset" => 6467,       "docType" => "nginx-access",      "@version" => "1",    "input_type" => "log",          "beat" => {            "name" => "2106567e5bce",        "hostname" => "2106567e5bce",         "version" => "5.6.2"
    },          "host" => "2106567e5bce",        "source" => "/work/yphp/nginx/logs/hello71.log",       "message" => "172.16.10.1 - - [24/Sep/2018:09:01:14 +0000] \"GET /?time=2244 HTTP/1.1\" 200 98087 \"-\" \"Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36\" \"-\" 0.195",          "type" => "log",          "tags" => [
        [0] "ngx",
        [1] "yujc",
        [2] "beats_input_codec_plain_applied",
        [3] "_grokparsefailure"
    ]
}

最后面提示了_grokparsefailure,说明grok部分写的有问题。由于是参考的网上教程,也加上刚接触,不知道怎么配置,filebeat.conf调试了很久才生效。

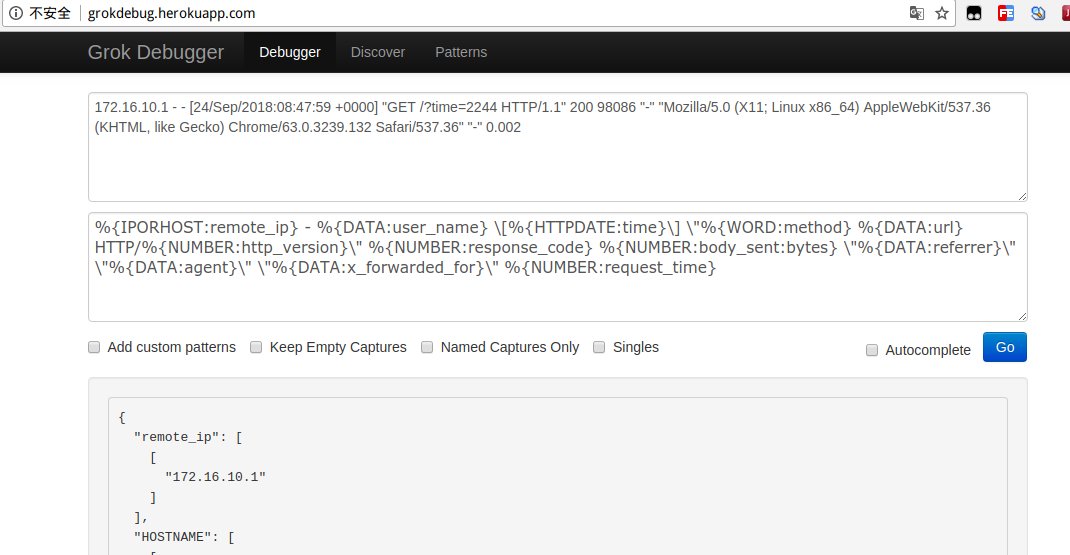

我们打开Grok Debugger,第一个输入框输入filebeat采集的消息原文message字段里的内容,第二个输入框输入grok表达式:

点击Go按钮即可解析。如果下面的内容是{}说明解析失败,然后可以修改表达式,该工具会自动解析。最终解析结果:

{  "remote_ip": [
    [      "172.16.10.1"
    ]
  ],  "HOSTNAME": [
    [      "172.16.10.1"
    ]
  ],  "IP": [
    [      null
    ]
  ],  "IPV6": [
    [      null
    ]
  ],  "IPV4": [
    [      null
    ]
  ],  "user_name": [
    [      "-"
    ]
  ],  "time": [
    [      "24/Sep/2018:08:47:59 +0000"
    ]
  ],  "MONTHDAY": [
    [      "24"
    ]
  ],  "MONTH": [
    [      "Sep"
    ]
  ],  "YEAR": [
    [      "2018"
    ]
  ],  "TIME": [
    [      "08:47:59"
    ]
  ],  "HOUR": [
    [      "08"
    ]
  ],  "MINUTE": [
    [      "47"
    ]
  ],  "SECOND": [
    [      "59"
    ]
  ],  "INT": [
    [      "+0000"
    ]
  ],  "method": [
    [      "GET"
    ]
  ],  "url": [
    [      "/?time=2244"
    ]
  ],  "http_version": [
    [      "1.1"
    ]
  ],  "BASE10NUM": [
    [      "1.1",      "200",      "98086",      "0.002"
    ]
  ],  "response_code": [
    [      "200"
    ]
  ],  "body_sent": [
    [      "98086"
    ]
  ],  "referrer": [
    [      "-"
    ]
  ],  "agent": [
    [      "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36"
    ]
  ],  "x_forwarded_for": [
    [      "-"
    ]
  ],  "request_time": [
    [      "0.002"
    ]
  ]
}

然后可以启动logstash了。

测试logstash配置是否通过:

./logstash/bin/logstash -f logstash/config/conf.d/filebeat.conf --config.test_and_exit

Config Validation Result: OK. Exiting Logstash
# 启动logstash./logstash/bin/logstash &# 启动filebeat./beats/filebeat/filebeat -c beats/filebeat/filebeat.test_nginx2.yml

我们再次访问Nginx应用,然后我们查看一条数据:

$ curl http://127.0.0.1:9200/test-nginx2-log-2018.09.24/_search?q=*&size=1&sort=@timestamp:desc

{  "took": 14,  "timed_out": false,  "_shards": {    "total": 5,    "successful": 5,    "skipped": 0,    "failed": 0
  },  "hits": {    "total": 3,    "max_score": null,    "hits": [
      {        "_index": "test-nginx2-log-2018.09.24",        "_type": "log",        "_id": "AWYK0to8JzfnbYlB_DRx",        "_score": null,        "_source": {          "response_code": "200",          "agent": "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36",          "logIndex": "nginx",          "offset": 6875,          "method": "GET",          "docType": "nginx-access",          "user_name": "-",          "input_type": "log",          "http_version": "1.1",          "source": "/work/yphp/nginx/logs/hello71.log",          "message": """172.16.10.1 - - [24/Sep/2018:09:04:40 +0000] "GET /?time=2244 HTTP/1.1" 200 98086 "-" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36" "-" 0.002""",          "type": "log",          "url": "/?time=2244",          "tags": [            "ngx",            "yujc",            "beats_input_codec_plain_applied"
          ],          "x_forwarded_for": "-",          "referrer": "-",          "@timestamp": "2018-09-24T09:04:40.404Z",          "remote_ip": "172.16.10.1",          "request_time": "0.002",          "@version": "1",          "beat": {            "name": "2106567e5bce",            "hostname": "2106567e5bce",            "version": "5.6.2"
          },          "host": "2106567e5bce",          "body_sent": "98086",          "time": "24/Sep/2018:09:04:40 +0000"
        },        "sort": [          1537779880404
        ]
      }
    ]
  }
}

里面就包含了所有我们解析出来的字段。

kibana里查看

打开kibana web地址:http://127.0.0.1:5601,依次打开:Management
-> Kibana -> Index Patterns ,选择Create Index Pattern

a. Index pattern 输入:test-nginx2-*

b. Time Filter field name 选择 @timestamp

c. 点击Create。

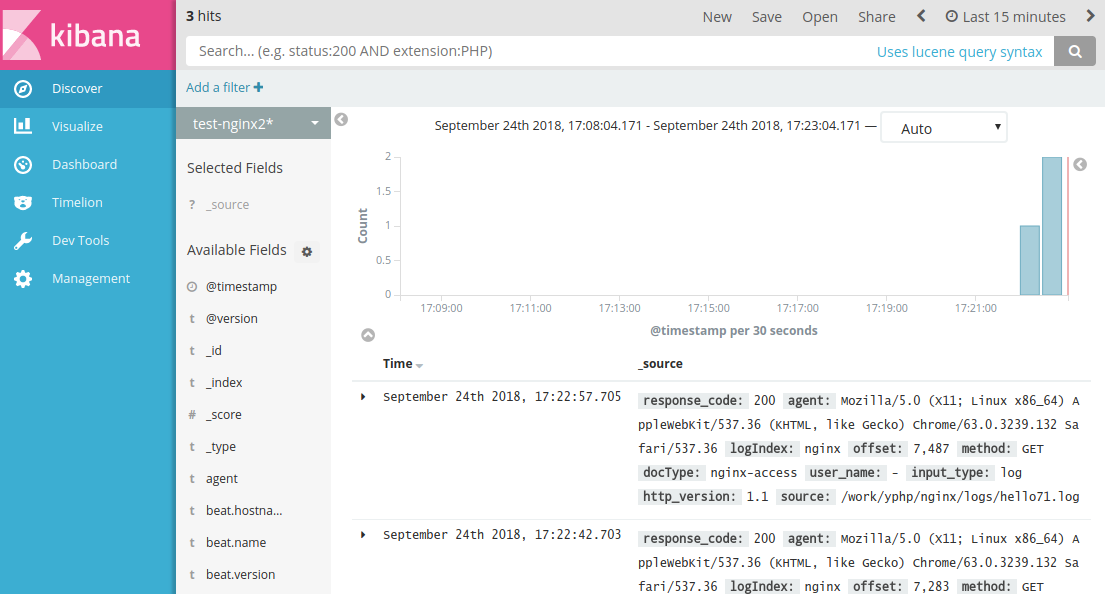

然后打开Discover,选择 filebeat-* 就能看到日志数据了。

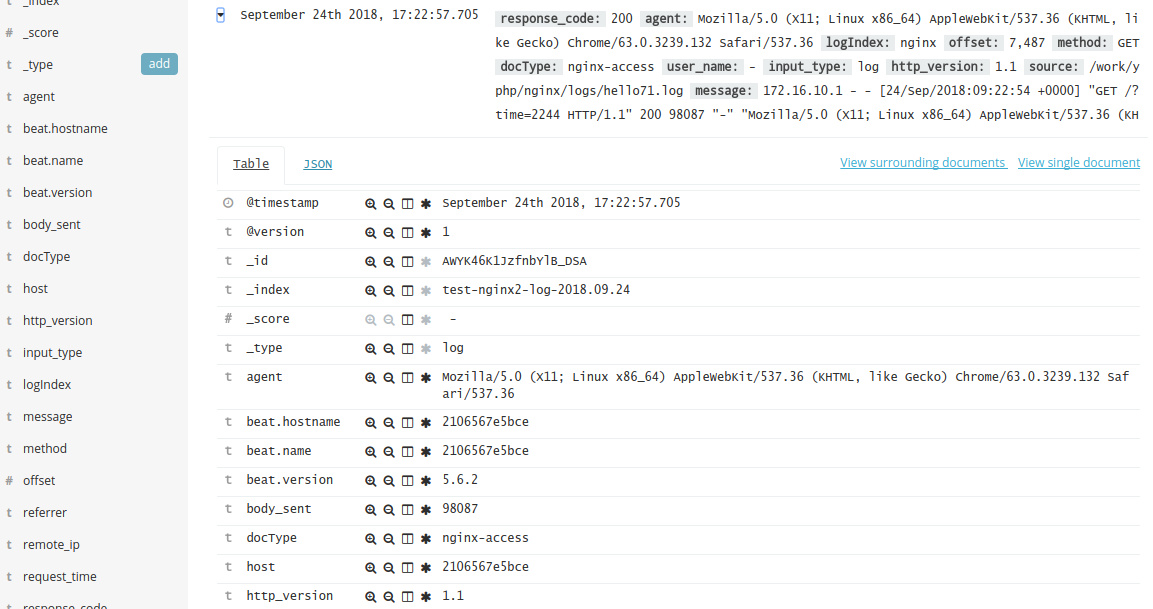

可以看到详细字段:

参考

1、Logstash使用grok过滤nginx日志(二) - Orgliny - 博客园
https://www.cnblogs.com/Orgliny/p/5592186.html
2、Rsyslog日志服务搭建 - K‘e0llm - 博客园
http://www.cnblogs.com/Eivll0m/p/6700828.html
3、Logstash中如何处理到ElasticSearch的数据映射 - Cocowool - 博客园
https://www.cnblogs.com/cocowool/p/7347069.html
4、ELK 架构之 Logstash 和 Filebeat 安装配置 - 田园里的蟋蟀 - 博客园
http://www.cnblogs.com/xishuai/p/elk-logstash-filebeat.html
5、搭建ELK日志分析平台(下)—— 搭建kibana和logstash服务器-zero菌-51CTO博客
http://blog.51cto.com/zero01/2082794

原文出处:https://www.cnblogs.com/52fhy/p/10160795.html
