TiDB Binlog 源码阅读系列文章(三)Pump client 介绍

作者:黄佳豪

上篇文章 中,我们介绍了 Pump 的作用是存储 TiDB 产生的 binlog。本篇将介绍 Pump client,希望大家了解 TiDB 把 binlog 写到 Pump,以及输出数据的过程。

gRPC API

Pump client 的代码在 tidb-tools 下这个 路径,TiDB 会直接 import 这个路径使用 Pump client package。TiDB 跟 Pump 之间使用 gRPC 通信,相关的 proto 文件定义在 这里。Pump server 提供以下两个接口:

// Interfaces exported by Pump.
service Pump {
    // Writes a binlog to the local file on the pump machine.
    // A response with an empty errmsg is returned if the binlog is written successfully.
    rpc WriteBinlog(WriteBinlogReq) returns (WriteBinlogResp) {}

    // Sends binlog stream from a given location.
    rpc PullBinlogs(PullBinlogReq) returns (stream PullBinlogResp) {}
}

本文我们主要介绍 RPC WriteBinlog 这个接口,Pump client 会通过这个接口写 binlog 到 Pump。

WriteBinlogReq 里面包含的 binlog event

// Binlog contains all the changes in a transaction, which can be used to reconstruct SQL statement, then export to
// other systems.
message Binlog {
    optional BinlogType    tp             = 1 [(gogoproto.nullable) = false];

    // start_ts is used in Prewrite, Commit and Rollback binlog Type.
    // It is used for pairing prewrite log to commit log or rollback log.
    optional int64         start_ts       = 2 [(gogoproto.nullable) = false];

    // commit_ts is used only in binlog type Commit.
    optional int64         commit_ts      = 3 [(gogoproto.nullable) = false];

    // prewrite key is used only in Prewrite binlog type.
    // It is the primary key of the transaction, is used to check that the transaction is
    // commited or not if it failed to pair to commit log or rollback log within a time window.
    optional bytes         prewrite_key   = 4;

    // prewrite_data is marshalled from PrewriteData type,
    // we do not need to unmarshal prewrite data before the binlog have been successfully paired.
    optional bytes         prewrite_value = 5;

    // ddl_query is the original ddl statement query.
    optional bytes         ddl_query      = 6;

    // ddl_job_id is used for DDL Binlog.
    // If ddl_job_id is setted, this is a DDL Binlog and ddl_query contains the DDL query.
    optional int64         ddl_job_id     = 7 [(gogoproto.nullable) = false];
}

TiDB 如何写 binlog

TiDB 的事务采用 2-phase-commit 算法,一次事务提交会分为 Prewrite 和 Commit 阶段,有兴趣的可以看下相关文章《TiKV 事务模型概览,Google Spanner 开源实现》

大家可以先猜想一下 TiDB 是如何写 binlog 的?

如果只写一条 binlog 的话可行吗?可以很容易想到,如果只写一条 binlog 的话必须确保写 binlog 操作和事务提交操作是一个原子操作,那么就要基于事务模型再构建一个复杂的 2PC 模型,从复杂度方面考虑这个方案几乎是不可行的。

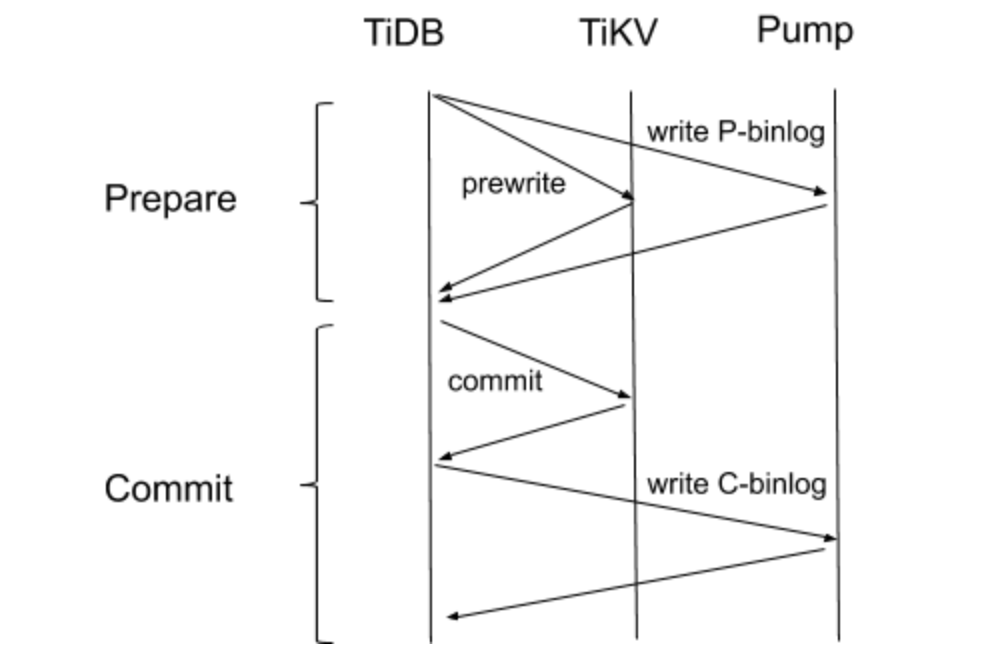

实际上,在 TiDB 的实现中,TiDB 会每个阶段分别写一条 binlog, 即:Prewrite binlog 和 Commit binlog,下面会简称 P-binlog 和 C-binlog ,具体写入流程如下:

这里我们说的 P-binlog 和 C-binlog 都是通过 RPC WriteBinlog 接口写入,对应着参数 WriteBinlogReq 里面包含的 binlog event,只是字段有些区别:

  • P-binlog 对应的 tpPrewrite,C-binlog 的 tpCommit 或者 Rollback

  • 同个事务的 P-binlog 和 C-binlog 包含相同 start_ts

  • 只有 P-binlog 包含对应事务修改数据 prewrite_value

  • 只有 C-binlog 包含事务的 commit_ts

在 Prepare 的阶段,TiDB 会把 Prewrite 的数据发到 TiKV,同时并发写一条 P-binlog 到其中一个 Pump。 两个操作全部成功后才会进行 Commit 阶段,所以我们提交事务时就可以确定 P-binlog 已经成功保存。写 C-binlog 是在 TiKV 提交事务后异步发送的,告诉 Pump 这个事务提交了还是回滚了。

写 binlog 对事务延迟的影响

  • Prepare 阶段:并发写 P-binlog 到 Pump 和 Prewrite data 到 TiKV,如果请求 Pump 写 P-binlog 的速度快于写 TiKV 的速度,那么对延迟没有影响。一般而言写入 Pump 会比写入 TiKV 更快。

  • Commit 阶段:异步的去写 C-binlog,对延迟也没有影响。

写 binlog 失败

  1. 写 P-binlog 失败,那么 transaction 不会 commit,不会对系统有任何影响。

  2. 写 C-binlog 失败,Pump 会等待最多 max transaction timeout 的时间(这是一个 TiDB/Pump 的配置,默认为 10 分钟),然后向 TiKV 去查询 transaction 的提交状态来补全 C-binlog,但是此时同步延迟也等于 max transaction timeout 。这种情况经常发生于 TiDB 进程重启或者挂掉的场景。

  3. 写 P-binlog 成功,但是 Prewrite 失败,那么也会和 2 类似。

Pump client 源码

Pump client 的代码维护在 pump_client,提供了 NewPumpsClient 方法来创建一个 Pump client 实例。Pump client 的主要功能就是维护所有 Pump 状态(将 Pump 分为 avaliable 和 unavailable 两种状态),以此为依据将 TiDB 生成的 binlog 发送到合适的 Pump。为此 Pump client 主要实现了以下几个机制:

  1. watch etcd

    Pump 在运行时会将自己的状态信息上报到 PD(etcd)中,并且定时更新自己的状态。在创建 Pump client 的时候,会 首先从 PD(etcd)中获取所有的 Pump 状态信息,根据 Pump 状态是否为 Online 初步判断 Pump 为 avaliable 或者 unavailable。然后 Pump client 会 watch etcd 中的 Pump 状态变更,及时更新内存中维护的 Pump 状态。

  2. binlog 重试机制

    对于每个 Pump,在 Pump client 中都维护了一个变量 ErrNum 来记录该 Pump 写 binlog 的失败次数,当 ErrNum 超过一定的阈值,则判断 该 Pump 不可用,如果写 binlog 成功,则 重置 ErrNum

  3. 发送探活请求

    在某些情况下,比如网络抖动,可能会导致 Pump 写 binlog 失败,因此该 Pump 被 Pump client 判断状态为 unavailable,但是当网络恢复后,该 Pump 仍然可以提供写 binlog 服务。Pump client 实现了 detect 机制,会定期向 unavailable 状态的 Pump 发送探活请求,如果探活请求成功,则更新 Pump 状态为 avaliable。

为了将 binlog 均匀地分发到所有 Pump,Pump client 使用 PumpSelector 为每一个 binlog 选择一个合适的 Pump,PumpSelector 是一个接口,提供 SetPumps 方法来设置可选的 Pump 列表,提供 Select 来为 binlog 选择 Pump。目前主要实现了 HashRound-Robin 两种策略。

为了提高 Pump client 的健壮性,binlog 写失败后会提供一定的重试,每个 Pump 可以重试写多次,同时也会尽量尝试所有的 Pump,这样就可以保证部分 Pump 有故障或者临时的网络抖动也不影响 TiDB 写 binlog,可以查看 WriteBinlog 了解具体实现方式。

小结

本文给大家介绍了 TiDB 如何通过 Pump client 写 binlog 到 Pump,以及 binlog 的主要内容,后续我们将继续介绍 Pump server 是对应如何处理相应请求的。
