课程名称:Spring Cloud / Alibaba 微服务架构实战
课程章节:第7章-解读 SpringCloud Gateway Filter
课程讲师:张勤一
课程内容:

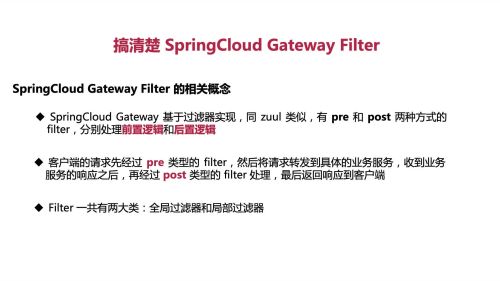

1. SpringCloud Gateway Filter的相关概念
-
SpringCloud Gateway是基于过滤器实现的,有pre和post两种方式的filter,分别处理前置逻辑和后置逻辑。
过程:客户端的请求先经过 pre 类型的filter, 然后将请求转发到具体的业务服务, 收到业务服务的响应之后,再经过post类型的filter处理,最后返回响应给客户端。
-
Filter 一共有两大类型:全局过滤器和局部过滤器

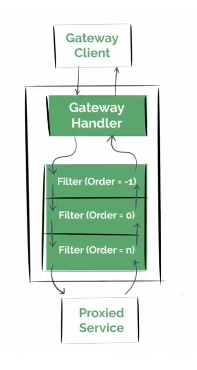

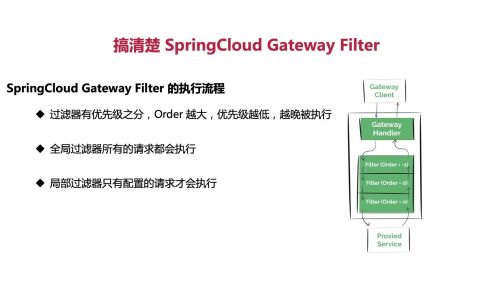

2.SpringCloud Gateway Filter的执行流程
- 过滤器有优先级之分,order越大,优先级越低越晚被执行。
- 全局过滤器所有的请求都会执行。
- 局部过滤器只有配置了请求才会执行。
3. 过滤器源码
- RouteToRequestUrlFilter关键源码
- RouteToRequestUrlFilter是全局过滤器,默认过滤所有请求。
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
//获取此过滤器之间的过滤器
Route route = exchange.getAttribute(GATEWAY_ROUTE_ATTR);
//如果为空,则直接放行
if (route == null) {
return chain.filter(exchange);
}
log.trace("RouteToRequestUrlFilter start");
URI uri = exchange.getRequest().getURI();
boolean encoded = containsEncodedParts(uri);
URI routeUri = route.getUri();
if (hasAnotherScheme(routeUri)) {
// this is a special url, save scheme to special attribute
// replace routeUri with schemeSpecificPart
exchange.getAttributes().put(GATEWAY_SCHEME_PREFIX_ATTR,
routeUri.getScheme());
routeUri = URI.create(routeUri.getSchemeSpecificPart());
}
if ("lb".equalsIgnoreCase(routeUri.getScheme()) && routeUri.getHost() == null) {
// Load balanced URIs should always have a host. If the host is null it is
// most
// likely because the host name was invalid (for example included an
// underscore)
throw new IllegalStateException("Invalid host: " + routeUri.toString());
}
//将微服务路径转换为真实的请求路径
URI mergedUrl = UriComponentsBuilder.fromUri(uri)
// .uri(routeUri)
.scheme(routeUri.getScheme()).host(routeUri.getHost())
.port(routeUri.getPort()).build(encoded).toUri();
exchange.getAttributes().put(GATEWAY_REQUEST_URL_ATTR, mergedUrl);
return chain.filter(exchange);
}
课程截图:
