【金秋打卡】第19天 重构核心指标组件之销售组件日期组

2022.11.11 15:09 45浏览

课程名称:Vue + EChart 4.0 从0到1打造商业级数据报表项目

课程章节重构核心指标组件之销售组件日期组件
课程讲师: Sam

课程内容:
使用vue-echart重构,重构的样式会很简洁,无关的样式比如获取DOM等都可以删除了
创建公共的style样式
src/style/index.css

	.echarts {
	  width: 100%;
	  height: 100%;
	}
	.el-card__header {
	  border-bottom: none;
	  padding: 0;
	}

在mian.js中引入css

import Vue from 'vue'
import App from './App.vue'
import router from './router'
import './plugins/element.js'
import './plugins/vcharts'
import ECharts from 'echarts'
import VueECharts from 'vue-echarts'
import './style/index.css'  // 新增

Vue.config.productionTip = false
Vue.prototype.$echarts = ECharts
Vue.component('v-chart', VueECharts)

new Vue({
  router,
  render: h => h(App)
}).$mount('#app')

重构累计订单TotalOrders

<template>
  <common-card
    title="累计订单量"
    :value="orderToday"
  >
    <template>
      <v-chart :options="getOptions()" />
    </template>
    <template v-slot:footer>
      <span>昨日订单量 </span>
      <span class="emphasis">{{orderLastDay}}</span>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin],
    methods: {
      getOptions() {
        return this.orderTrend.length > 0 ? {
          xAxis: {
            type: 'category',
            show: false,
            boundaryGap: false
          },
          yAxis: {
            show: false
          },
          series: [{
            type: 'line',
            data: this.orderTrend,
            areaStyle: {
              color: 'purple'
            },
            lineStyle: {
              width: 0
            },
            itemStyle: {
              opacity: 0
            },
            smooth: true
          }],
          grid: {
            top: 0,
            bottom: 0,
            left: 0,
            right: 0
          }
        } : null
      }
    }
  }
</script>

修改TodayUsers/index.vue

	<template>
  <common-card
    title="今日交易用户数"
    :value="orderUser"
  >
    <template>
      <v-chart :options="getOptions()" />
    </template>
    <template v-slot:footer>
      <span>退货率 </span>
      <span class="emphasis">{{returnRate}}</span>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin],
    methods: {
      getOptions() {
        return {
          color: ['#3398DB'],
          tooltip: {},
          series: [{
            name: '用户实时交易量',
            type: 'bar',
            data: this.orderUserTrend,
            barWidth: '60%'
          }],
          xAxis: {
            type: 'category',
            data: this.orderUserTrendAxis,
            show: false
          },
          yAxis: {
            show: false
          },
          grid: {
            top: 0,
            left: 0,
            bottom: 0,
            right: 0
          }
        }
      }
    }
  }
</script>

<style lang="scss" scoped>
</style>

重构TotalUsers

<template>
  <common-card
    title="累计用户数"
    :value="userToday"
  >
    <template>
      <v-chart :options="getOptions()" />
    </template>
    <template v-slot:footer>
      <div class="total-users-footer">
        <span>日同比</span>
        <span class="emphasis">{{userGrowthLastDay}}</span>
        <div class="increase" />
        <span class="month">月同比</span>
        <span class="emphasis">{{userGrowthLastMonth}}</span>
        <div class="decrease" />
      </div>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin],
    methods: {
      getOptions() {
        return {
          grid: {
            left: 0,
            right: 0,
            top: 0,
            bottom: 0
          },
          xAxis: {
            type: 'value',
            show: false
          },
          yAxis: {
            type: 'category',
            show: false
          },
          series: [{
            name: '上月平台用户数',
            type: 'bar',
            stack: '总量',
            data: [this.userLastMonth],
            barWidth: 10,
            itemStyle: {
              color: '#45c946'
            }
          }, {
            name: '今日平台用户数',
            type: 'bar',
            stack: '总量',
            data: [this.userTodayNumber],
            itemStyle: {
              color: '#eee'
            }
          }, {
            type: 'custom',
            stack: '总量',
            data: [this.userLastMonth],
            renderItem: (params, api) => {
              const value = api.value(0)
              const endPoint = api.coord([value, 0])

              return {
                type: 'group',
                position: endPoint,
                children: [{
                  type: 'path',
                  shape: {
                    d: 'M1024 255.996 511.971 767.909 0 255.996 1024 255.996z',
                    x: -5,
                    y: -20,
                    width: 10,
                    height: 10,
                    layout: 'cover'
                  },
                  style: {
                    fill: '#45c946'
                  }
                }, {
                  type: 'path',
                  shape: {
                    d: 'M0 767.909l512.029-511.913L1024 767.909 0 767.909z',
                    x: -5,
                    y: 10,
                    width: 10,
                    height: 10,
                    layout: 'cover'
                  },
                  style: {
                    fill: '#45c946'
                  }
                }]
              }
            }
          }]
        }
      }
    }
  }
</script>

<style lang="scss" scoped>
  .total-users-footer {
    display: flex;
    align-items: center;

    .month {
      margin-left: 10px;
    }
  }
</style>

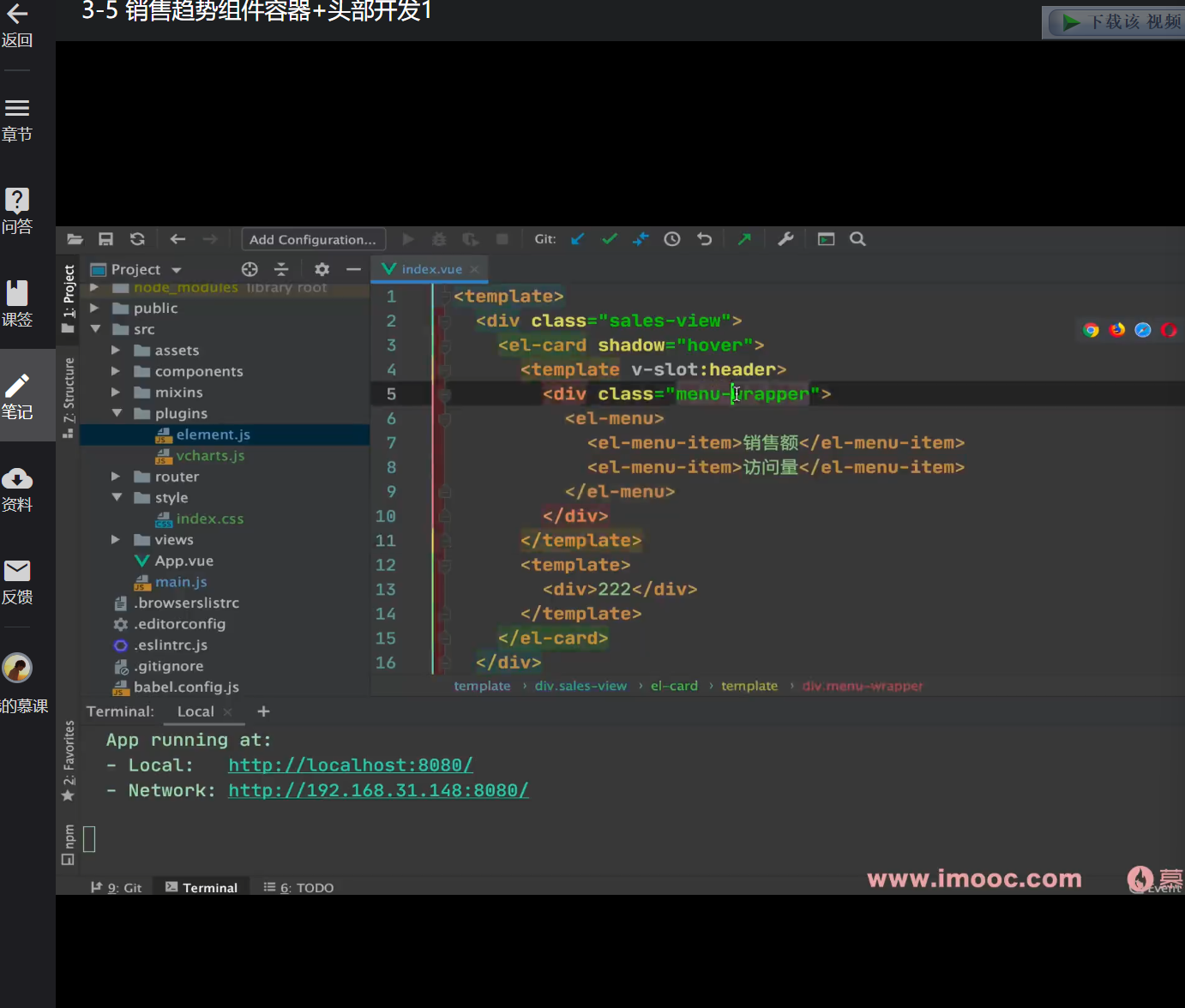

改造sales组件
图片描述

<template>
  <div class="sales-view">
    <el-card shadow="hover" :body-style="{ padding: '0 0 20px 0' }">
      <template v-slot:header>
        <div class="menu-wrapper">
          <el-menu
            :default-active="activeIndex"
            mode="horizontal"
            @select="onMenuSelect"
            class="sales-view-menu"
          >
            <el-menu-item index="1">销售额</el-menu-item>
            <el-menu-item index="2">访问量</el-menu-item>
          </el-menu>
          <div class="menu-right">
            <el-radio-group v-model="radioSelect" size="small">
              <el-radio-button label="今日" />
              <el-radio-button label="本周" />
              <el-radio-button label="本月" />
              <el-radio-button label="今年" />
            </el-radio-group>
            <el-date-picker
              type="daterange"
              v-model="date"
              range-separator="至"
              start-placeholder="开始日期"
              end-placeholder="结束日期"
              size="small"
              unlink-panels
              :picker-options="pickerOptions"
              class="sales-view-date-picker"
            />
          </div>
        </div>
      </template>
      <template>
        <div class="sales-view-chart-wrapper">
          <v-chart :options="chartOption" />
          <div class="sales-view-list">
            <div class="sales-view-title">排行榜</div>
            <div class="list-item-wrapper">
              <div class="list-item" v-for="item in rankData" :key="item.no">
                <div :class="['list-item-no', +item.no <= 3 ? 'top-no' : '']">{{item.no}}</div>
                <div class="list-item-name">{{item.name}}</div>
                <div class="list-item-money">{{item.money}}</div>
              </div>
            </div>
          </div>
        </div>
      </template>
    </el-card>
  </div>
</template>

<script>
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonDataMixin],
    data() {
      return {
        activeIndex: '1',
        radioSelect: '今日',
        date: null,
        pickerOptions: {
          shortcuts: [{
            text: '最近一周',
            onClick(picker) {
              const start = new Date()
              const end = new Date()
              start.setTime(start.getTime() - 3600 * 24 * 1000 * 7)
              picker.$emit('pick', [start, end])
            }
          }, {
            text: '最近一个月',
            onClick(picker) {
              const start = new Date()
              const end = new Date()
              start.setTime(start.getTime() - 3600 * 24 * 1000 * 30)
              picker.$emit('pick', [start, end])
            }
          }, {
            text: '最近三个月',
            onClick(picker) {
              const start = new Date()
              const end = new Date()
              start.setTime(start.getTime() - 3600 * 24 * 1000 * 90)
              picker.$emit('pick', [start, end])
            }
          }]
        },
        chartOption: {}
      }
    },
    computed: {
      rankData() {
        return this.activeIndex === '1' ? this.orderRank : this.userRank
      }
    },
    watch: {
      orderFullYear() {
        this.render(this.orderFullYear, this.orderFullYearAxis, '年度销售额')
      }
    },
    methods: {
      onMenuSelect(index) {
        this.activeIndex = index
        if (index === '1') {
          this.render(this.orderFullYear, this.orderFullYearAxis, '年度销售额')
        } else {
          this.render(this.userFullYear, this.userFullYearAxis, '年度用户访问量')
        }
      },
      render(data, axis, title) {
        this.chartOption = {
          title: {
            text: title,
            textStyle: {
              fontSize: 12,
              color: '#666'
            },
            left: 25,
            top: 20
          },
          xAxis: {
            type: 'category',
            data: axis,
            axisTick: {
              alignWithLabel: true,
              lineStyle: {
                color: '#999'
              }
            },
            axisLine: {
              lineStyle: {
                color: '#999'
              }
            },
            axisLabel: {
              color: '#333'
            }
          },
          yAxis: {
            axisLine: {
              show: false
            },
            axisTick: {
              show: false
            },
            splitLine: {
              lineStyle: {
                type: 'dotted',
                color: '#eee'
              }
            }
          },
          series: [{
            type: 'bar',
            barWidth: '35%',
            data
          }],
          color: ['#3398DB'],
          grid: {
            top: 70,
            left: 60,
            right: 60,
            bottom: 50
          }
        }
      }
    }
  }
</script>

<style lang="scss" scoped>
  .sales-view {
    margin-top: 20px;

    .menu-wrapper {
      position: relative;
      display: flex;

      .sales-view-menu {
        width: 100%;
        padding-left: 20px;

        .el-menu-item {
          height: 50px;
          line-height: 50px;
          margin: 0 20px;
        }
      }

      .menu-right {
        position: absolute;
        top: 0;
        right: 20px;
        height: 50px;
        display: flex;
        align-items: center;
        justify-content: flex-end;

        .sales-view-date-picker {
          margin-left: 20px;
        }
      }
    }

    .sales-view-chart-wrapper {
      display: flex;
      height: 270px;

      .echarts {
        flex: 0 0 70%;
        width: 70%;
        height: 100%;
      }

      .sales-view-list {
        flex: 1;
        width: 100%;
        height: 100%;
        overflow: hidden;

        .sales-view-title {
          margin-top: 20px;
          font-size: 12px;
          color: #666;
          font-weight: 500;
        }

        .list-item-wrapper {
          margin-top: 15px;

          .list-item {
            display: flex;
            align-items: center;
            font-size: 12px;
            height: 20px;
            padding: 6px 20px 6px 0;

            .list-item-no {
              display: flex;
              align-items: center;
              justify-content: center;
              width: 20px;
              height: 20px;
              color: #333;

              &.top-no {
                background: #000;
                border-radius: 50%;
                color: #fff;
                font-weight: 500;
              }
            }

            .list-item-name {
              margin-left: 10px;
              color: #333;
            }

            .list-item-money {
              flex: 1;
              text-align: right;
            }
          }
        }
      }
    }
  }
</style>

课程收获:
学习到了如何使用vue-echarts对现在的业务进行重构,深入链接了,date-picker代码实现的原理,查看源码实现自定义参数,还可以根据自己项目需求自定义一周,一个月,一年的实现,更加贴近项目的需求,在vue-echarts中只要是自,自定义每个组件的:options,然后跟据需要展示的内容,配置固定的参数就可以实现了,vue-echarts配置细节确实需要了解透彻,然后知道如何查看源码,才可以更快的,更加有效的完成项目的需求,期待后面认真的学习ing
