更改NavigationView的单个特定菜单项的背景颜色

/ 猿问

更改NavigationView的单个特定菜单项的背景颜色

蓝山帝景 2019-10-21 15:42:36

我想在导航抽屉中的android菜单中设置所有标题项的背景颜色。我的布局如下:


<menu xmlns:android="http://schemas.android.com/apk/res/android">

  <item android:title="TopItem" android:id="@+id/top_item1"> // Here i want to set the background

    <menu>

      <group>

        <item android:id="@+id/sub_item1"

            android:title="SubItem" /> // Here no background

      </group>

    </menu>

  </item>

  <item android:title="TopItem" android:id="@+id/top_item2">

    <menu>

      <group>

       <item android:id="@+id/sub_item2"

            android:title="SubItem" />

        <item android:id="@+id/sub_item3"

            android:title="SubItem" />

       <item android:id="@+id/sub_item4"

            android:title="SubItem" />

      </group>

    </menu>

</menu>

结果应该看起来像:

http://img.mukewang.com/5dad61810001c12604030536.jpg

我发现我可以使用类似的方法设置文本颜色:


MenuItem menuItem = navigationView.getMenu().findItem(R.id.menu_item);

SpannableString s = new SpannableString(menuItem.getTitle());

s.setSpan(new TextAppearanceSpan(this, R.style.TextAppearance), 0, s.length(), 0);


if (menuItem.getItemId()==R.id.nav_targets){

  menuItem.setTitle(s); }

但是如何设置填充背景色?


查看完整描述

3 回答

?
慕雪9262066

更改单个特定菜单项的背景颜色


AFAIK使用菜单,您无法创建自定义菜单navigationView


当您用来BackgroundColorSpan为菜单项设置背景时,仅将背景设置为菜单项标题,而不是整个视图


输出使用 BackgroundColorSpan

//img3.mukewang.com/5dad61920001634903740654.jpg

使用以下方式尝试 RecyclerView

activity_main.xml


<?xml version="1.0" encoding="utf-8"?>

<android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:app="http://schemas.android.com/apk/res-auto"

    xmlns:tools="http://schemas.android.com/tools"

    android:id="@+id/drawer_layout"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:fitsSystemWindows="true"

    tools:openDrawer="start">


    <include

        layout="@layout/app_bar_main"

        android:layout_width="match_parent"

        android:layout_height="match_parent" />


    <android.support.design.widget.NavigationView

        android:id="@+id/nav_view"

        android:layout_width="wrap_content"

        android:layout_height="match_parent"

        android:layout_gravity="start"

        android:fitsSystemWindows="true">


        <LinearLayout

            android:layout_width="match_parent"

            android:layout_height="match_parent"

            android:orientation="vertical">


            <include layout="@layout/nav_header_main" />


            <android.support.v7.widget.RecyclerView

                android:id="@+id/navRecyclerView"

                android:layout_width="match_parent"

                android:layout_height="wrap_content" />


        </LinearLayout>

    </android.support.design.widget.NavigationView>


</android.support.v4.widget.DrawerLayout>

主要活动


public class MainActivity extends AppCompatActivity

        implements NavigationView.OnNavigationItemSelectedListener {


    RecyclerView navRecyclerView;

    LinearLayoutManager layoutManager;

    ArrayList<NavigationDataModel> arrayList = new ArrayList<>();

    NavigationAdapter adapter;


    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);

        Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

        setSupportActionBar(toolbar);


        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

        ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(

                this, drawer, toolbar, R.string.navigation_drawer_open, R.string.navigation_drawer_close);

        drawer.addDrawerListener(toggle);

        toggle.syncState();


        NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);


        navigationView.setNavigationItemSelectedListener(this);


        navRecyclerView = findViewById(R.id.navRecyclerView);

        navRecyclerView.setHasFixedSize(true);

        layoutManager = new LinearLayoutManager(this);

        navRecyclerView.setLayoutManager(layoutManager);


        initArray();


        adapter = new NavigationAdapter(this, arrayList);

        navRecyclerView.setAdapter(adapter);



    }


    private void initArray() {


        NavigationDataModel model = new NavigationDataModel();

        model.setColor(ContextCompat.getColor(this, R.color.colorPrimary));

        model.setIcon(R.drawable.ic_menu_gallery);

        model.setTitle("Item 1");

        arrayList.add(model);



        NavigationDataModel model2 = new NavigationDataModel();

        model2.setColor(ContextCompat.getColor(this, R.color.colorRed));

        model2.setIcon(R.drawable.ic_menu_camera);

        model2.setTitle("Item 2");

        arrayList.add(model2);


        NavigationDataModel model3 = new NavigationDataModel();

        model3.setColor(ContextCompat.getColor(this, R.color.colorGreen));

        model3.setIcon(R.drawable.ic_menu_send);

        model3.setTitle("Item 3");

        arrayList.add(model3);


        NavigationDataModel model4 = new NavigationDataModel();

        model4.setColor(ContextCompat.getColor(this, R.color.colorPink));

        model4.setIcon(R.drawable.ic_menu_share);

        model4.setTitle("Item 4");

        arrayList.add(model4);


    }


    @Override

    public void onBackPressed() {

        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

        if (drawer.isDrawerOpen(GravityCompat.START)) {

            drawer.closeDrawer(GravityCompat.START);

        } else {

            super.onBackPressed();

        }

    }


    @Override

    public boolean onCreateOptionsMenu(Menu menu) {

        // Inflate the menu; this adds items to the action bar if it is present.

        getMenuInflater().inflate(R.menu.main, menu);

        return true;

    }


    @Override

    public boolean onOptionsItemSelected(MenuItem item) {

        // Handle action bar item clicks here. The action bar will

        // automatically handle clicks on the Home/Up button, so long

        // as you specify a parent activity in AndroidManifest.xml.

        int id = item.getItemId();


        //noinspection SimplifiableIfStatement

        if (id == R.id.action_settings) {

            return true;

        }


        return super.onOptionsItemSelected(item);

    }


    @SuppressWarnings("StatementWithEmptyBody")

    @Override

    public boolean onNavigationItemSelected(MenuItem item) {

        // Handle navigation view item clicks here.

        int id = item.getItemId();



        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

        drawer.closeDrawer(GravityCompat.START);

        return true;

    }

}

导航适配器


public class NavigationAdapter extends RecyclerView.Adapter<NavigationAdapter.ViewHolder> {


    Context context;

    ArrayList<NavigationDataModel> arrayList = new ArrayList<>();


    public NavigationAdapter(Context context, ArrayList<NavigationDataModel> arrayList) {

        this.context = context;

        this.arrayList = arrayList;

    }


    @NonNull

    @Override

    public ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {

        View view = LayoutInflater.from(context).inflate(R.layout.custom_layout, parent, false);

        return new ViewHolder(view);

    }


    @Override

    public void onBindViewHolder(@NonNull ViewHolder holder, int position) {


        holder.navIcon.setImageResource(arrayList.get(position).getIcon());

        holder.rootView.setBackgroundColor(arrayList.get(position).getColor());

        holder.navTitle.setText(arrayList.get(position).getTitle());

    }


    @Override

    public int getItemCount() {

        return arrayList.size();

    }


    public class ViewHolder extends RecyclerView.ViewHolder {

        ImageView navIcon;

        TextView navTitle;

        LinearLayout rootView;


        public ViewHolder(View itemView) {

            super(itemView);

            rootView = itemView.findViewById(R.id.rootView);

            navIcon = itemView.findViewById(R.id.navIcon);

            navTitle = itemView.findViewById(R.id.navTitle);

        }

    }

}

NavigationDataModel


public class NavigationDataModel {

    private int icon, color;

    private String title;


    public int getIcon() {

        return icon;

    }


    public void setIcon(int icon) {

        this.icon = icon;

    }


    public int getColor() {

        return color;

    }


    public void setColor(int color) {

        this.color = color;

    }


    public String getTitle() {

        return title;

    }


    public void setTitle(String title) {

        this.title = title;

    }

}

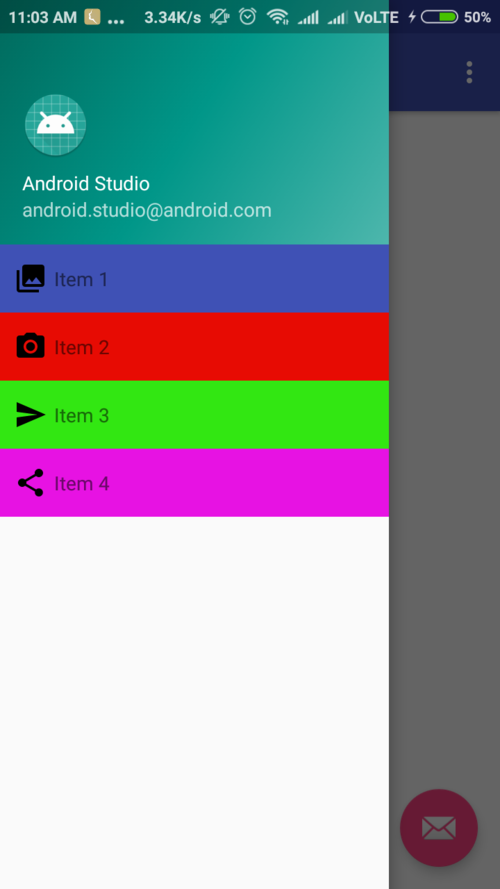

输出值

//img.mukewang.com/5dad61a80001b29d07201280.jpg


查看完整回答
反对 回复 2019-10-21
?
潇潇雨雨

您可以通过更改文本的背景颜色BackgroundColorScan。


  NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);

            MenuItem menuItem = navigationView.getMenu().findItem(R.id.your_menu_item_id);

            Spannable spannable = new SpannableString(menuItem.getTitle());

            spannable.setSpan(new BackgroundColorSpan(0xFF00CCCC), 0, menuItem.getTitle().length(), Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);

            menuItem.setTitle(spannable);


查看完整回答
反对 回复 2019-10-21
?
浮云间

navigationView.ItemBackground = new ColorDrawable(Android.Graphics.Color.Green);

这可能会有所帮助。


查看完整回答
反对 回复 2019-10-21
